Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

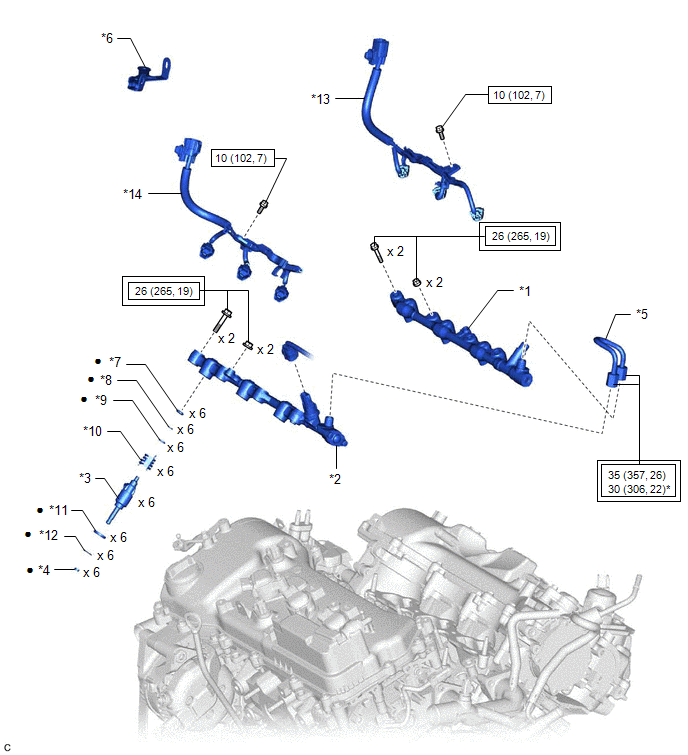

ILLUSTRATION

*1

FUEL DELIVERY PIPE RH

*2

FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH

*3

FUEL INJECTOR ASSEMBLY

*4

FUEL INJECTOR SEAL

*5

NO. 2 FUEL PIPE SUB-ASSEMBLY

*6

WIRE HARNESS CLAMP BRACKET

*7

NO. 3 FUEL INJECTOR BACK-UP RING

*8

O-RING

*9

NO. 1 FUEL INJECTOR BACK-UP RING

*10

NOZZLE HOLDER CLAMP

*11

INJECTOR VIBRATION INSULATOR

*12

C-RING

*13

NO. 6 ENGINE WIRE

*14

NO. 7 ENGINE WIRE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with a union nut wrench

Non-reusable part

    Fuel Injector(for Direct Injection)

    Inspection
