INSPECTION

PROCEDURE

1. INSPECT FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH)

NOTICE:

  • Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly LH.
  • If the fuel pressure sensor is removed, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly LH) with a new one.

(a) Check the fuel pressure sensor output voltage.

(1) Apply 5 V between terminals 1 (VC) and 2 (E2).

NOTICE:

  • Be careful when connecting the leads, as the fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.
  • Do not apply more than 6 V to terminals 1 (VC) or 2 (E2).

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

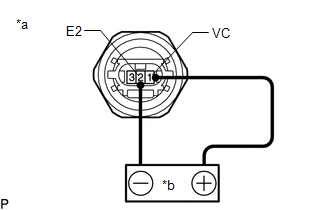

*a

Component without harness connected

(Fuel Pressure Sensor)

*b

Voltage Applied between Terminals

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

3 (PR) - 2 (E2)

Pressure not applied to fuel pressure sensor

Approximately 0.4 to 0.6 V*

*: The output voltage changes depending on the voltage applied to the terminals.

If the result is not as specified, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly LH).

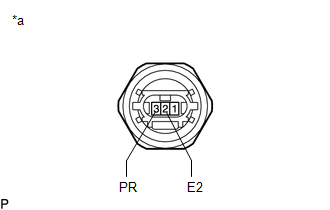

*a

Component without harness connected

(Fuel Pressure Sensor)
    Components

    Installation
