REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pressure sensor (fuel delivery pipe with sensor assembly LH) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
*: When performing learning using the Techstream.

Click here

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

  • Replacement of fuel pressure sensor (fuel delivery pipe with sensor assembly LH)
  • Replacement of fuel injector assembly (for Port Injection)
  • Replacement of fuel injector assembly (for Direct Injection)
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

CAUTION:

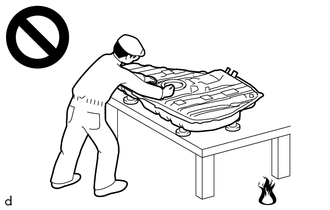

  • Never perform work on fuel system components near any possible ignition sources.
  • Vaporized fuel could ignite, resulting in a serious accident.

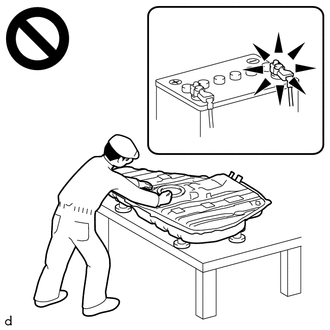

  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

PROCEDURE

1. REMOVE FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH)

Click here

NOTICE:

  • Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly LH.
  • If the fuel pressure sensor is removed, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly LH) with a new one.

2. REMOVE FUEL PIPE PLUG SUB-ASSEMBLY

(a) Secure the fuel delivery pipe with sensor assembly LH in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.

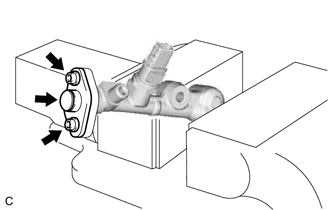

(b) Using a 5 mm hexagon socket wrench, remove the 2 bolts, gasket and fuel pipe plug sub-assembly from the fuel delivery pipe with sensor assembly LH.

(c) Remove the dust cap sub-assembly from the fuel pipe plug sub-assembly.

(d) Remove the O-ring, No. 1 fuel injector back-up ring, No. 2 fuel injector back-up ring and No. 3 fuel injector back-up ring from the fuel pipe plug sub-assembly.

(e) Remove the fuel delivery pipe with sensor assembly LH from the vise.

    Installation

    Fuel Pressure Sensor
