REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump control ECU removal/installation are shown below. Necessary Procedures After Parts Removed/Installed/Replaced

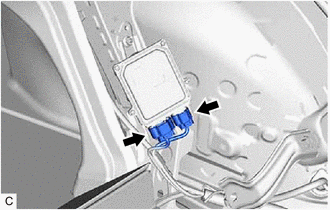

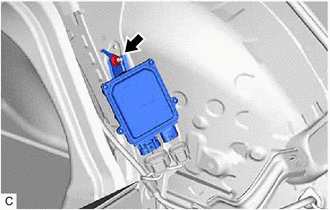

PROCEDURE 1. REMOVE REAR SEAT ASSEMBLY Click here 2. REMOVE CENTER STOP LIGHT SET Click here 3. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD (w/o Seat Heater System) Click here 4. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Click here 5. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH HINT: Use the same procedure as for the LH side. 6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH Click here 7. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH HINT: Use the same procedure as for the LH side. 8. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH Click here 9. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH HINT: Use the same procedure as for the LH side. 10. REMOVE ROOF SIDE INNER GARNISH LH Click here 11. REMOVE ROOF SIDE INNER GARNISH RH HINT: Use the same procedure as for the LH side. 12. REMOVE REAR SEAT SHOULDER BELT COVER Click here 13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Click here 14. REMOVE ROOM PARTITION BOARD LH Click here 15. REMOVE FUEL PUMP CONTROL ECU

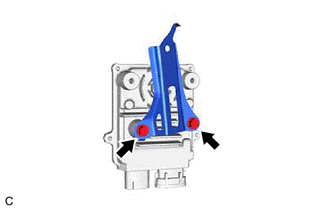

16. REMOVE FUEL PUMP CONTROL ECU BRACKET
|
