Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

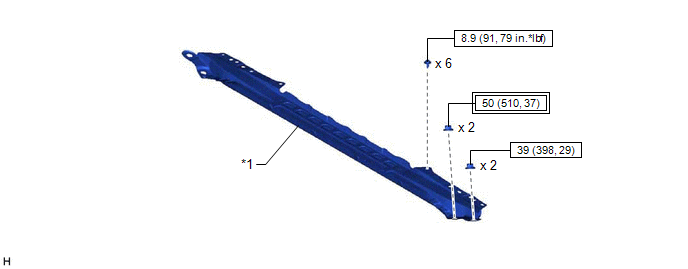

ILLUSTRATION

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

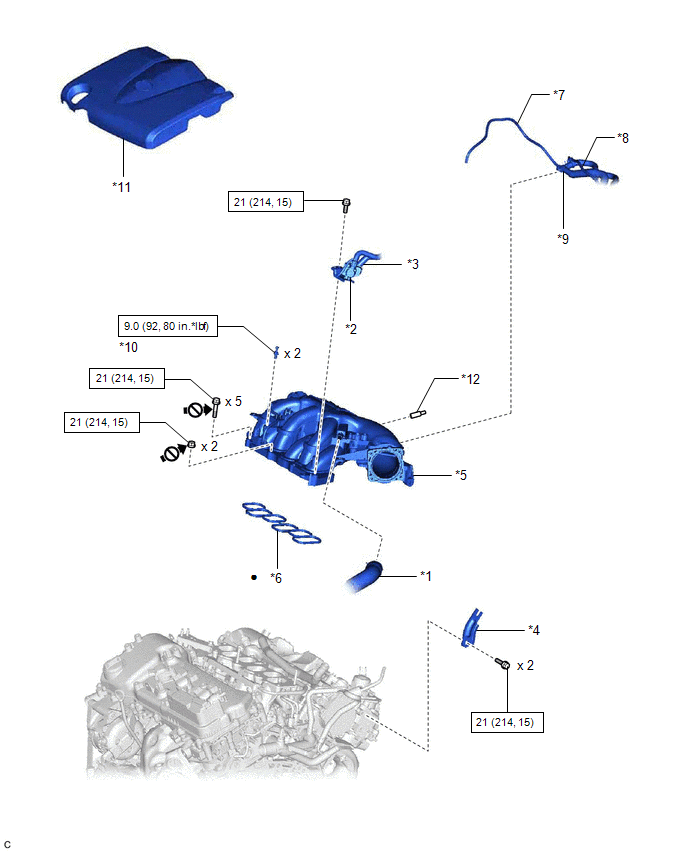

ILLUSTRATION

*1

VENTILATION HOSE

*2

PURGE VALVE (PURGE VSV)

*3

NO. 1 FUEL VAPOR FEED HOSE

*4

NO. 2 SURGE TANK STAY

*5

INTAKE AIR SURGE TANK ASSEMBLY

*6

AIR SURGE TANK TO INTAKE MANIFOLD GASKET

*7

VACUUM HOSE SUB-ASSEMBLY

*8

VACUUM HOSE

*9

NO. 2 AIR TUBE

*10

NO. 1 V-BANK COVER BRACKET

*11

V-BANK COVER SUB-ASSEMBLY

*12

PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Do not apply lubricants (to the threaded parts)

-

-

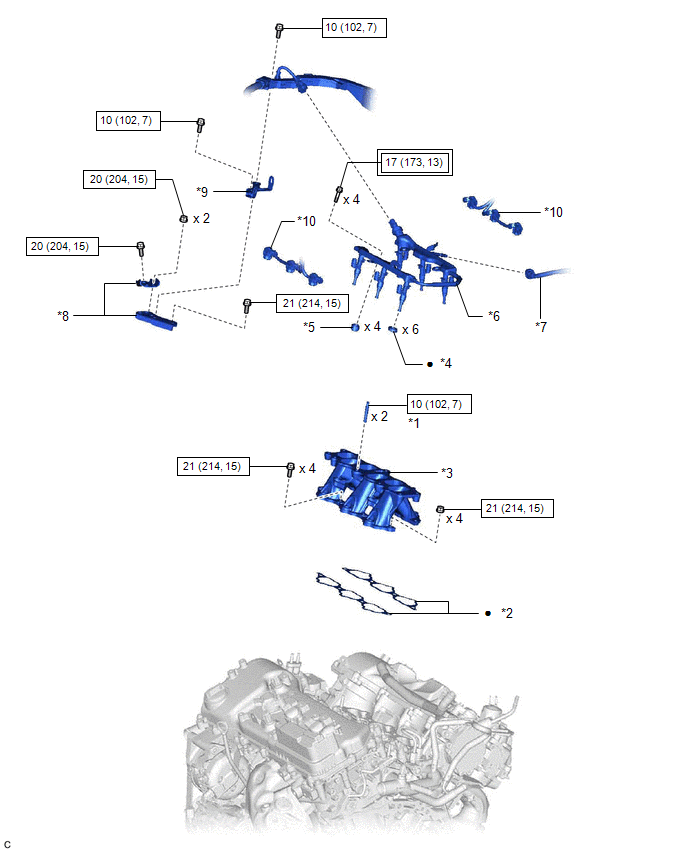

ILLUSTRATION

*1

STUD BOLT

*2

NO. 1 INTAKE MANIFOLD TO HEAD GASKET

*3

INTAKE MANIFOLD

*4

INJECTOR VIBRATION INSULATOR

*5

NO. 1 DELIVERY PIPE SPACER

*6

FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

*7

FUEL TUBE SUB-ASSEMBLY

*8

NO. 2 ENGINE MOUNTING STAY RH

*9

WIRE HARNESS CLAMP BRACKET

*10

NO. 5 ENGINE WIRE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part


    Intake Manifold

    Installation
