REMOVAL

PROCEDURE

1. REMOVE FRONT FENDER APRON SEAL RH

Click here

2. DRAIN ENGINE OIL

Click here

3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

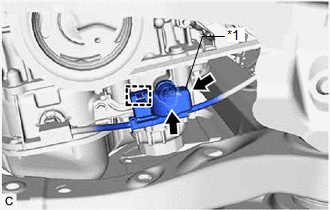

(a) Disengage the clamp to disconnect the wire harness protector.

*1

Wire Harness Protector

(b) Disconnect the engine oil pressure switch assembly connector.

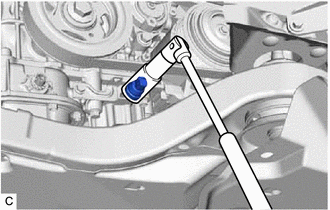

(c) Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
