The multi-information display presents the driver with a variety of driving- related data, such as the current outside temperature. The multi-information display can also be used to change the display settings and other settings.

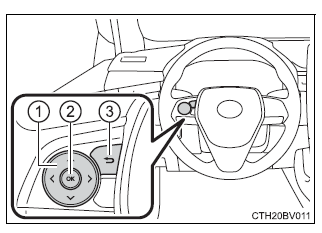

Using the multi-information display Using the content display area The content display area is operated using the meter control switches.
Pressing and holding the switch will display the first screen of the selected menu icon. *: When the screen can be scrolled or different content can be displayed, a mark, such as an arrow, will be displayed to suggest which switch to operate. Using the odometer/trip meter Items in this area are operated using the "ODO/TRIP" switch. Press: Change displayed item Each time the switch is pressed, the displayed item will be changed. Press and hold: Reset Display the desired trip meter and press and hold the switch to reset the trip meter. |
Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Audio And Visual System(for Hv Model): Data Signal Circuit between Radio Receiver and Stereo Jack Adapter
DESCRIPTION The stereo jack adapter assembly sends the sound data signal or image data signal from a USB device to the radio and display receiver assembly via this circuit. WIRING DIAGRAM PROCEDURE 1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - STEREO JACK ADAPTER ASSEMBLY) (a ...
