COMPONENTS

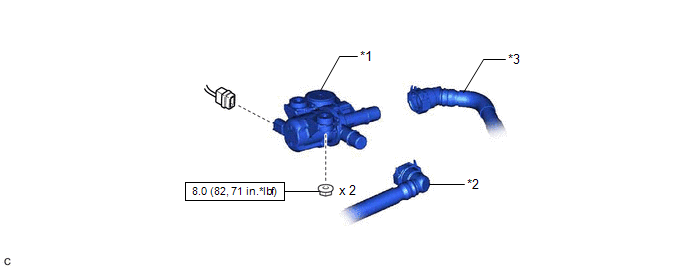

ILLUSTRATION

*1

FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)

*2

FUEL TANK VENT HOSE SUB-ASSEMBLY

*3

FUEL TANK VENT HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
