Toyota Avalon Service & Repair Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(e) Check the PCV valve (ventilation valve sub-assembly) operation.

(1) Start the engine.

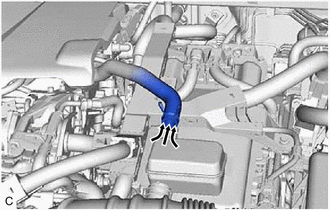

(2) Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose assembly.

(3) Check that air is sucked into the No. 2 ventilation hose.

Standard:

Air is sucked into the No. 2 ventilation hose.

If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).

    Installation

    Removal
