Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR FUEL RATIO SENSOR

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

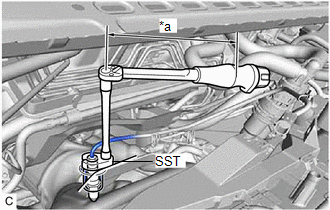

(a) Using SST, install the air fuel ratio sensor to the exhaust manifold (TWC: Front Catalyst).

SST: 09224-00012

Torque:

Specified tightening torque :

44 N·m {449 kgf·cm, 32 ft·lbf}

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

*a

Torque Wrench Fulcrum Length

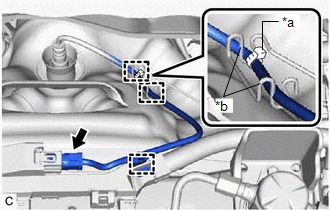

(b) Connect the air fuel ratio sensor connector.

*a

Tie Band

*b

Wire Harness Clamp

(c) Engage the 3 wire harness clamps so that the tie band is positioned as shown in the illustration.

2. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here

3. INSPECT FOR EXHAUST GAS LEAK

Click here

4. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

    Inspection

    Removal
