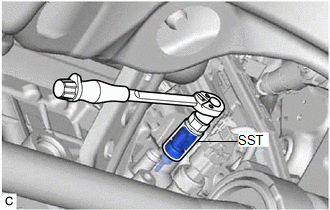

INSTALLATION PROCEDURE 1. INSTALL ENGINE OIL TEMPERATURE SENSOR (a) Install a new gasket to the engine oil temperature sensor.
(c) Connect the engine oil temperature sensor connector. 2. CHECK ENGINE OIL LEVEL Click here 3. INSPECT FOR ENGINE OIL LEAK Click here 4. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY Click here 5. INSTALL NO. 1 ENGINE UNDER COVER Click here 6. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Click here 7. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH Click here |
