Toyota Avalon Service & Repair Manual / Engine / A25a-fxs Engine Control / Engine Oil Temperature Sensor / Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

Click here

4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

5. REMOVE ENGINE OIL TEMPERATURE SENSOR

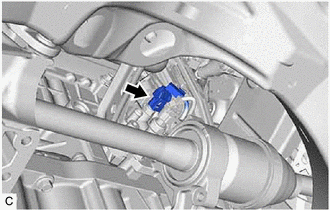

(a) Disconnect the engine oil temperature sensor connector.

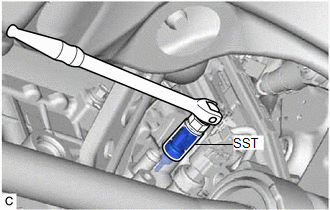

(b) Using SST, remove the engine oil temperature sensor from the cylinder block sub-assembly.

SST: 09817-33191

NOTICE:

If the engine oil temperature sensor has been struck or dropped, replace it.

(c) Remove the gasket from the engine oil temperature sensor.
