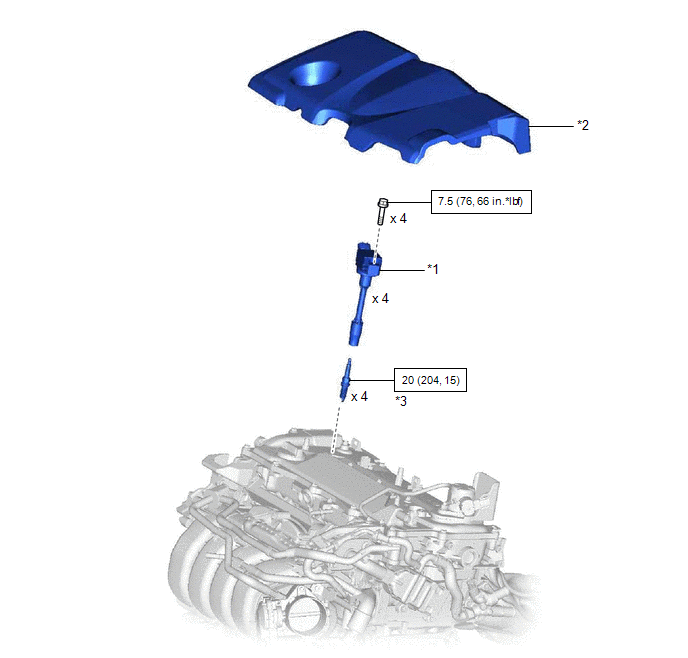

Components COMPONENTS ILLUSTRATION
Installation INSTALLATION CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts. Click here
PROCEDURE 1. INSTALL SPARK PLUG Click here 2. INSTALL IGNITION COIL ASSEMBLY HINT: Perform "Inspection After Repair" after replacing an ignition coil assembly. Click here (a) Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts. Torque: 7.5 N·m {76 kgf·cm, 66 in·lbf} NOTICE: If an ignition coil assembly has been struck or dropped, replace it. HINT: Install the same parts to their original positions. (b) Connect the 4 ignition coil assembly connectors. 3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Click here
4. PERFORM INITIALIZATION (a) Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug. Click here Removal REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below. Necessary Procedures After Parts Removed/Installed/Replaced
NOTICE: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts. Click here
PROCEDURE 1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Click here 2. REMOVE IGNITION COIL ASSEMBLY

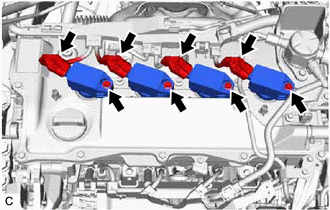

(b) Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly. NOTICE: If an ignition coil assembly has been struck or dropped, replace it. HINT: Arrange the removed parts in the correct order. 3. REMOVE SPARK PLUG Click here |
