DESCRIPTION

Refer to DTC P052012.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P052024

Engine Oil Pressure Sensor/Switch "A" Signal Stuck High

The oil pressure sensor output voltage is higher than the threshold value (1 trip detection logic).

  • Open or short in oil pressure sensor (oil pressure sender gauge assembly) circuit
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • ECM

Comes on

DTC stored

SAE Code: P0521

P05202A

Engine Oil Pressure Sensor/Switch "A" Signal Stuck in Range

The oil pressure sensor output voltage is the same value for a certain period of time (1 trip detection logic).

  • Open or short in oil pressure sensor (oil pressure sender gauge assembly) circuit
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • ECM

Comes on

DTC stored

SAE Code: P0521

Related Data List

DTC No.

Data List

P052024

  • Engine Oil Temperature Sensor
  • Engine Oil Pressure

P05202A

MONITOR DESCRIPTION

The ECM calculates the engine oil pressure based on the output voltage of the oil pressure sensor. If any of the following are detected, the ECM will illuminate the MIL and store a DTC.

  • The oil pressure sensor output value differs from the specified value for a given engine speed (P052024).
  • The oil pressure sensor output voltage does not change for a certain period of time (P05202A).

MONITOR STRATEGY

Related DTCs

P0521: Engine oil pressure sensor rationality (high)

P0521: Engine oil pressure sensor rationality (stuck)

Required Sensors/Components (Main)

Oil pressure sensor (oil pressure sender gauge assembly)

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

3 seconds: High pressure monitor

5 seconds: Stuck monitor

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

High Pressure Monitor

Both of the following conditions are met

-

Engine coolant temperature

70°C (158°F) or higher

Engine coolant temperature sensor malfunction (P0117, P0118)

Not detected

Stuck Monitor

All of the following conditions are met

-

Engine speed

Higher than 400 rpm, and 3500 rpm or less

Engine oil pressure sensor malfunction (P0521, P0522, P0523)

Not detected

Engine coolant temperature

0°C (32°F) or higher

Engine coolant temperature sensor malfunction (P0117, P0118)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

High Pressure Monitor

Engine oil pressure at engine speed 1000 rpm

560 kPa (81 psi) or higher (vary with engine speed)

Stuck Monitor

Difference between oil pressure (smoothed) and oil pressure (not smoothed)

1.0 kPa (0.15 psi) or less (vary with engine speed)

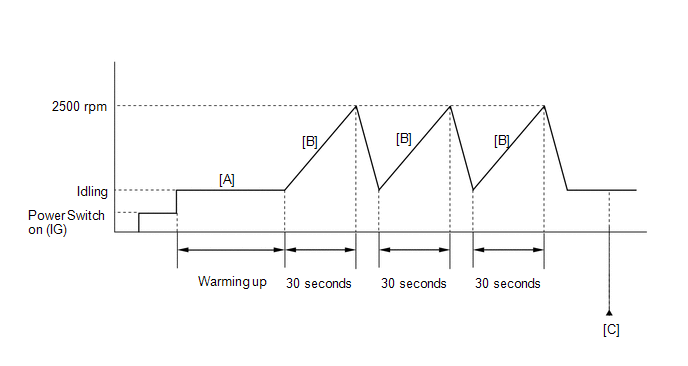

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.
  6. Turn the power switch on (IG).
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off [A].
  10. When the vehicle is stationery, gently depress the accelerator pedal until the engine speed increases to 2500 rpm for 30 seconds, then release the accelerator pedal to return to the idling speed [B].
  11. Repeat step [B] 3 times or more.
  12. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  13. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  15. Input the DTC: P052024 or P05202A.
  16. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P052024 OR P05202A)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P052024 or P05202A is output

A

DTC P052024 or P05202A and other DTCs are output

B

HINT:

If any DTCs other than P052024 or P05202A are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

INSPECT OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY)

(a) Read the value displayed on the Techstream.

(1) Disconnect the oil pressure control valve assembly connector.

(2) Connect the Techstream to the DLC3.

(3) Turn the power switch on (IG).

(4) Turn the Techstream on.

(5) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(6) Start the engine.

(7) Enter the following menus: Powertrain / Engine / Data List / Engine Oil Temperature Sensor and Engine Oil Pressure.

Powertrain > Engine > Data List

Tester Display

Engine Oil Temperature Sensor

Engine Oil Pressure

(8) With the engine oil temperature at 75 to 85°C (167 to 185°F), read the "Engine Oil Pressure" with the engine speed at 2500 rpm.

(b) Read the oil pressure using an oil pressure gauge with adapter.

(1) Install the oil pressure gauge.

Click here

(2) Turn the power switch on (IG).

(3) Turn the Techstream on.

(4) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(5) Start the engine.

(6) With the engine oil temperature at 75 to 85°C (167 to 185°F), read the oil pressure gauge with the engine speed at 2500 rpm.

(c) Compare the Data List value and the oil pressure gauge reading.

OK:

Data List value and gauge reading are within +/-50 kPa (7.3 psi) of each other

HINT:

Be sure to clear the DTCs after reinstalling the oil pressure sensor (oil pressure sender gauge assembly) or reconnecting the oil pressure sensor (oil pressure sender gauge assembly) or oil pressure control valve assembly connector, as DTCs may be stored.

OK

REPLACE ECM

NG

REPLACE OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY)
