DESCRIPTION

Variable oil pump control uses the oil pressure control valve assembly, engine oil temperature sensor, oil pressure sensor and ECM to optimize the oil pressure and oil volume required by each component to reduce friction by monitoring the engine temperature and engine speed.

The ECM drives the oil pressure control valve assembly based on the oil pressure measured by the oil pressure sensor. The oil pressure is controlled by operating the oil pressure control valve assembly to regulate the amount of discharge oil.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P052477

Engine Oil Pressure Too Low (Severe)

When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).

  • Oil pressure control valve assembly
  • Oil pump assembly
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • The engine oil level is low
  • The engine oil has deteriorated
  • ECM

Comes on

DTC stored

SAE Code: P0524

P15F009

Engine Oil Pressure Too Low (Moderate)

When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).

  • Oil pressure control valve assembly
  • Oil pump assembly
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • The engine oil level is low
  • The engine oil has deteriorated
  • ECM

Does not come on

DTC stored

SAE Code: P15F0

P15F077

Engine Oil Pressure Too Low (Minor)

When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).

  • Oil pressure control valve assembly
  • Oil pump assembly
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • The engine oil level is low
  • The engine oil has deteriorated
  • ECM

Does not come on

DTC stored

SAE Code: P15F0

P15F109

Variable Oil Pump Component Failure

When the piston oil jets are spraying oil (engine speed is 3000 rpm or more), the oil pressure is less than specified (1 trip detection logic).

  • Oil pressure control valve assembly
  • Oil pump assembly
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • The engine oil level is low
  • The engine oil has deteriorated
  • ECM

Does not come on

DTC stored

SAE Code: P15F1

P15F177

Variable Oil Pump Commanded Position Not Reachable

When the engine is running, the target value and the value output by the oil pressure sensor differ by more than the threshold (1 trip detection logic).

  • Oil pressure control valve assembly
  • Oil pump assembly
  • Oil pressure sensor (oil pressure sender gauge assembly)
  • The engine oil level is low
  • The engine oil has deteriorated
  • ECM

Does not come on

DTC stored

SAE Code: P15F1

Related Data List/Freeze Frame Data

DTC No.

Data List/Freeze Frame Data

P052477

  • Engine Speed
  • Engine Oil Temperature Sensor
  • Coolant Temperature
  • Engine Oil Pressure
  • Engine Oil Pressure Control Valve
  • Target Engine Oil Pressure

P15F009

P15F077

P15F109

P15F177

MONITOR DESCRIPTION

P052477, P15F009, P15F077 and P15F177:

The ECM monitors the oil pressure based on the signal output from the oil pressure sensor. If it is judged that the actual oil pressure generated by the oil pump assembly is less than the target oil pressure, oil pressure control using the oil pressure control valve assembly is suspended. After a certain period of time has elapsed, if it is judged that the actual oil pressure is low in comparison to the target oil pressure, it is determined that the oil pressure is low and a DTC is stored.

P15F109:

The ECM monitors the oil pressure based on the signal output from the oil pressure sensor. If the oil pressure is less than specified when the piston oil jets are spraying oil (engine speed is 3000 rpm or more), a DTC is stored.

MONITOR STRATEGY

Related DTCs

P0524: Oil pressure control system (oil pressure low)

Required Sensors/Components (Main)

Oil pressure sensor

Required Sensors/Components (Related)

-

Frequency of Operation

Once per driving cycle

Duration

Less than 30 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

P0524

Monitor runs whenever the following DTCs are not stored

None

Both of the following conditions are met

-

Engine speed

1500 rpm or higher

Engine coolant temperature

0°C (32°F) or higher

TYPICAL MALFUNCTION THRESHOLDS

P0524

Engine oil pressure

Less than threshold value

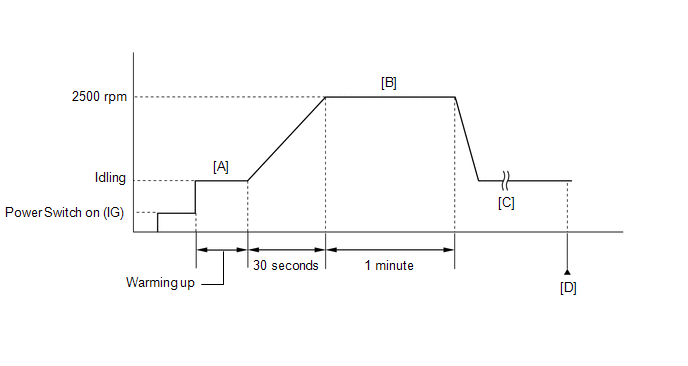

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.
  6. Turn the power switch on (IG).
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off [A].
  10. When the vehicle is stationery, gradually depress the accelerator pedal to increase the engine speed to 2500 rpm over a 30 second period, run the engine speed at 2500 rpm for 1 minute, then release the accelerator pedal to return to the idling speed [B].
  11. Repeat step [B] 3 times or more [C].
  12. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
  13. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  15. Input the DTC: P052477, P15F009, P15F077, P15F109 or P15F177.
  16. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
    • [A] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P06DA13.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • When DTC P052477 is stored, it is determined that the engine oil pressure is low (severe) and the maximum engine speed is limited.
  • When DTC P15F009 is stored, it is determined that the engine oil pressure is low (moderate) and the maximum engine speed is limited.
  • When DTC P15F077 is stored, it is determined that the engine oil pressure is low (minor) and the maximum engine speed is limited.
  • If the engine oil level is sufficient but a low engine oil level DTC is output, confirm with the customer whether engine oil was added after the vehicle had been driven with a low engine oil level.
  • A DTC may be stored if the engine oil in the oil passages was contaminated with foreign matter, etc., in the past, as the ECM performs compulsory control of the oil pressure control valve assembly to remove foreign matter from the oil pressure control valve assembly.
  • If an incorrect engine oil viscosity is used, a DTC related to low oil pressure, etc., may be stored.
  • Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P052477, P15F009, P15F077, P15F109 AND/OR P15F177)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 is output

A

DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 and other DTCs are output

B

HINT:

If any DTCs other than P052477, P15F009, P15F077, P15F109 and/or P15F177 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

CHECK ENGINE OIL LEVEL

(a) Check the engine oil level.

Click here

(b) Check the state of the oil level warning.

Result

Proceed to

Engine oil level is within the specified range and oil level warning is not displayed

A

Engine oil level is low and oil level warning is displayed

B

HINT:

If the oil level warning is not displayed even though the engine oil level is below the Low mark, or the oil level warning is displayed even though the engine oil level is within the specified range, inspect the oil level sensor and related parts.

B

GO TO STEP 5

A

3.

CHECK ENGINE OIL QUALITY

(a) Check the engine oil quality.

Click here

(b) Check that the engine oil is not contaminated with water, deteriorated, discolored or excessively thin.

OK:

The engine oil is not contaminated with water, deteriorated, discolored or excessively thin.

OK

GO TO STEP 7

NG

4.

REPLACE ENGINE OIL

(a) Replace the engine oil.

Click here

HINT:

If the oil filter has exceeded the replacement period, replace the oil filter at the same time.

NEXT

GO TO STEP 7

5.

CHECK FOR ENGINE OIL LEAK

(a) Check for engine oil leaks.

OK:

There are no engine oil leaks.

HINT:

If there are engine oil leaks, perform the following steps after repairing or replacing the malfunctioning parts.

NEXT

6.

ADD ENGINE OIL

(a) Add engine oil.

NOTICE:

Do not add engine oil to above the full level mark.

NEXT

7.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

NEXT

8.

CHECK WHETHER DTC OUTPUT RECURS (DTC P052477, P15F009, P15F077, P15F109 AND/OR P15F177)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus: Powertrain / Engine / Trouble Codes.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 is output

A

DTCs are not output

B

A

GO TO STEP 10

B

9.

READ VALUE USING TECHSTREAM (ENGINE OIL PRESSURE)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(e) Enter the following menus: Powertrain / Engine / Data List / Engine Speed, Engine Oil Temperature Sensor and Engine Oil Pressure.

Powertrain > Engine > Data List

Tester Display

Engine Speed

Engine Oil Temperature Sensor

Engine Oil Pressure

(f) Start the engine and warm it up until the engine oil temperature is 75 to 85°C (167 to 185°F).

(g) According to the display on the Techstream, read the Data List.

Standard

Engine Speed

Engine Oil Temperature Sensor

Engine Oil Pressure

1500 rpm

75 to 85°C (167 to 185°F)

80 kPa(gauge) [12 psi(gauge)] or higher

2500 rpm

80 kPa(gauge) [12 psi(gauge)] or higher

OK

END

NG

10.

PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE ENGINE OIL PRESSURE CONTROL VALVE)

(a) Remove the front fender apron seal RH.

Click here

(b) Connect the Techstream to the DLC3.

(c) Turn the power switch on (IG).

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine / Active Test / Activate the Engine Oil Pressure Control Valve.

Powertrain > Engine > Active Test

Tester Display

Activate the Engine Oil Pressure Control Valve

(f) Set the Active Test item "Activate the Engine Oil Pressure Control Valve" to 900.00 mA and confirm that the oil pressure control valve assembly makes an operation sound when the oil pressure control valve assembly connector is disconnected and reconnected.

OK:

An operation sound can be heard

HINT:

  • Be sure to clear the DTCs after performing the inspection as DTCs may be stored when the oil pressure control valve assembly connector disconnected.
  • As the maximum operating current of the oil pressure control valve is 1000 mA, it is necessary to operate the oil pressure control valve within this range when setting the Active Test item "Activate the Engine Oil Pressure Control Valve" (If the Active Test request value exceeds 1000 mA, the Active Test will be suspended).
  • If the Active Test value exceeds 1000 mA, reselect the value as the Active Test will be suspended.
NG

GO TO STEP 13

OK

11.

READ VALUE USING TECHSTREAM (ENGINE OIL PRESSURE)

(a) Disconnect the oil pressure control valve assembly connector.

(b) Connect the Techstream to the DLC3.

(c) Turn the power switch on (IG).

(d) Turn the Techstream on.

(e) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(f) Enter the following menus: Powertrain / Engine / Data List / Engine Speed, Engine Oil Temperature Sensor and Engine Oil Pressure.

Powertrain > Engine > Data List

Tester Display

Engine Speed

Engine Oil Temperature Sensor

Engine Oil Pressure

(g) Start the engine and warm it up until the engine oil temperature is 75 to 85°C (167 to 185°F).

(h) According to the display on the Techstream, read the Data List.

Standard

Engine Speed

Engine Oil Temperature Sensor

Engine Oil Pressure

1500 rpm

75 to 85°C (167 to 185°F)

100 kPa(gauge) [15 psi(gauge)] or higher

2500 rpm

200 kPa(gauge) [29 psi(gauge)] or higher

HINT:

  • By disconnecting the oil pressure control valve assembly connector, the non-regulated oil pressure can be measured.
  • Be sure to clear the DTCs after performing the inspection as DTCs may be stored when the oil pressure control valve assembly connector disconnected.
OK

REPLACE OIL PRESSURE CONTROL VALVE ASSEMBLY

NG

12.

CHECK ENGINE OIL PRESSURE

(a) Install the oil pressure gauge with adapter.

Click here

(b) Disconnect the oil pressure control valve assembly connector.

(c) Connect the Techstream to the DLC3.

(d) Turn the power switch on (IG).

(e) Turn the Techstream on.

(f) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display

Inspection Mode

(g) Enter the following menus: Powertrain / Engine / Data List / Engine Speed and Engine Oil Temperature Sensor.

Powertrain > Engine > Data List

Tester Display

Engine Speed

Engine Oil Temperature Sensor

(h) Start the engine and warm it up until the engine oil temperature is 75 to 85°C (167 to 185°F).

(i) With the engine oil temperature at 75 to 85°C (167 to 185°F), read the oil pressure gauge.

Standard

Engine Speed

Engine Oil Temperature Sensor

Engine oil pressure gauge value

1500 rpm

75 to 85°C (167 to 185°F)

100 kPa (1.0 kgf/cm2, 15 psi) or higher

2500 rpm

200 kPa (2.0 kgf/cm2, 29 psi) or higher

HINT:

Be sure to clear the DTCs after reinstalling the oil pressure sensor (oil pressure sender gauge assembly) or reconnecting the oil pressure sensor (oil pressure sender gauge assembly) or oil pressure control valve assembly connector, as DTCs may be stored.

OK

REPLACE OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY)

NG

REPLACE OIL PUMP ASSEMBLY

13.

INSPECT OIL PRESSURE CONTROL VALVE ASSEMBLY

(a) Inspect the oil pressure control valve assembly.

Click here

NG

REPLACE OIL PRESSURE CONTROL VALVE ASSEMBLY

OK

14.

CHECK HARNESS AND CONNECTOR (OIL PRESSURE CONTROL VALVE ASSEMBLY - ECM)

(a) Disconnect the oil pressure control valve assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C38-1 (OCV+) - C55-21 (VOP+)

Always

Below 1 Ω

C38-2 (OCV-) - C55-20 (VOP-)

Always

Below 1 Ω

C38-1 (OCV+) or C55-21 (VOP+) - Body ground and other terminals

Always

10 kΩ or higher

C38-2 (OCV-) or C55-20 (VOP-) - Body ground and other terminals

Always

10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

    Engine Oil Pressure Sensor/Switch "A" Signal Stuck High (P052024,P05202A)

    System Voltage Circuit Short to Ground or Open (P056014)

    See More:

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Garage Door Opener System(for Hv Model): Parts Location
    PARTS LOCATION ILLUSTRATION *1 INNER REAR VIEW MIRROR ASSEMBLY - GARAGE DOOR OPENER *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 3 FUSE ...

    Toyota Avalon (XX50) 2019-2022 Owners Manual

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

    © 2024 Copyright www.tavalon.net
    0.0151
