PARTS LOCATION

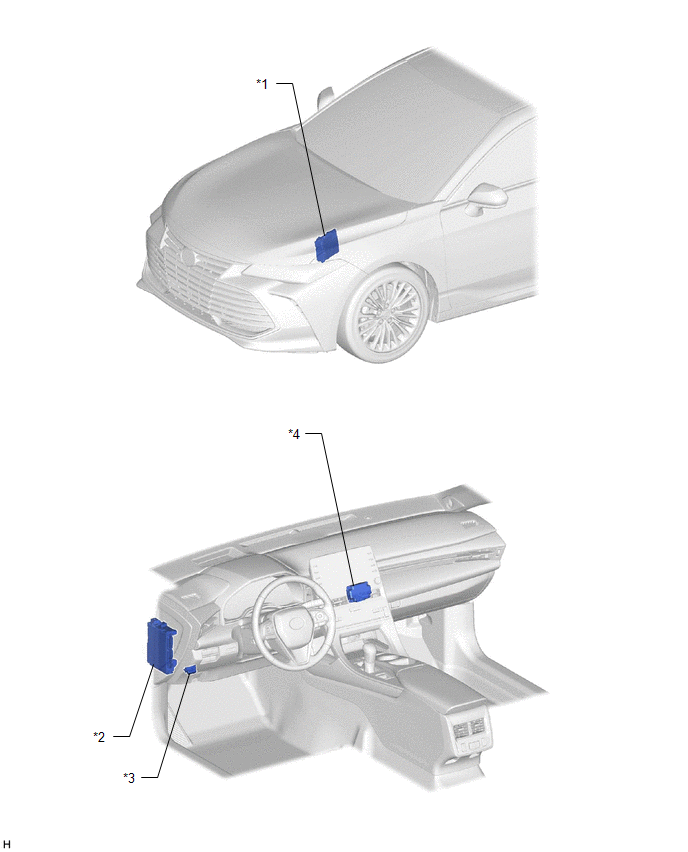

ILLUSTRATION

*1

ECM

*2

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-B NO. 2 FUSE

- ECU-IG1 NO. 4 FUSE

- ECU-ACC FUSE

*3

DLC3

*4

STEREO COMPONENT EQUALIZER ASSEMBLY

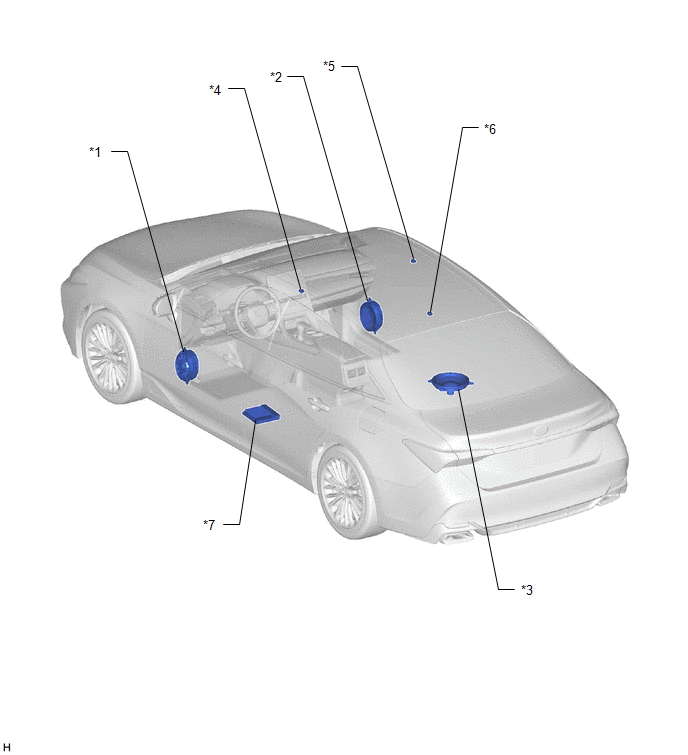

ILLUSTRATION

*1

FRONT NO. 1 SPEAKER ASSEMBLY LH

*2

FRONT NO. 1 SPEAKER ASSEMBLY RH

*3

REAR NO. 3 SPEAKER ASSEMBLY

*4

NO. 1 ACTIVE NOISE CONTROL MICROPHONE

*5

NO. 2 ACTIVE NOISE CONTROL MICROPHONE

*6

NO. 3 ACTIVE NOISE CONTROL MICROPHONE

*7

STEREO COMPONENT AMPLIFIER ASSEMBLY

-

-
