DESCRIPTION

The throttle actuator is operated by the ECM and opens and closes the throttle valve using gears. The opening angle of the throttle valve is detected by the throttle position sensor, which is built into the throttle body with motor assembly. The throttle position sensor provides feedback to the ECM. This feedback allows the ECM to appropriately control the throttle actuator and monitor the throttle opening angle as the ECM responds to a request from the hybrid system.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P211172

Throttle Actuator "A" Control System Actuator Stuck Open

The ECM signals the throttle actuator to close, but the actuator is stuck (1 trip detection logic).

  • Throttle actuator
  • Throttle body with motor assembly
  • Throttle valve
  • Wire harness or connector
  • ECM

Comes on

DTC stored

SAE Code: P2111

P211173

Throttle Actuator "A" Control System Actuator Stuck Closed

The ECM signals the throttle actuator to open, but the actuator is stuck (1 trip detection logic).

  • Throttle actuator
  • Throttle body with motor assembly
  • Throttle valve
  • Wire harness or connector
  • ECM

Comes on

DTC stored

SAE Code: P2112

MONITOR DESCRIPTION

If the throttle valve remains at a certain angle despite a high drive current from the ECM, the ECM determines that there is a malfunction in the Electronic Throttle Control System (ETCS), illuminates the MIL and stores a DTC.

MONITOR STRATEGY

Related DTCs

P2111: Throttle actuator stuck open

P2112: Throttle actuator stuck closed

Required Sensors/Components (Main)

Throttle actuator (throttle body with motor assembly)

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

0.5 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

P2111: Throttle Actuator Stuck Open

All of the following conditions are met

-

System guard* judge condition

On

Throttle actuator current

2 A or higher

Duty-cycle to close throttle

80% or higher

P2112: Throttle Actuator Stuck Closed

All of the following conditions are met

-

System guard* judge condition

On

Throttle actuator current

2 A or higher

Duty-cycle to open throttle

80% or higher

*: System guard set when following conditions are met

-

Throttle actuator

On

Throttle actuator duty calculation

Executing

Throttle position sensor fail (P0121, P0122, P0123, P0222, P0223, P2135)

Not detected

Throttle actuator current-cut operation

Not executing

Throttle actuator power supply

4 V or higher

Throttle actuator fail (P2102)

Not detected

TYPICAL MALFUNCTION THRESHOLDS

P2111: Throttle Actuator Stuck Open

Throttle position sensor voltage

No change

P2112: Throttle Actuator Stuck Closed

Throttle position sensor voltage

No change

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.

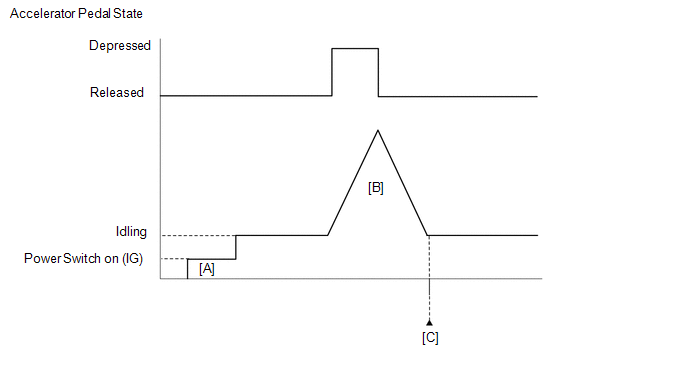

  6. Turn the power switch on (IG) [A].
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and fully depress and release the accelerator pedal quickly (to open and close the throttle valve) [B].

    HINT:

    During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, perform step [B] after charge control has completed.

  10. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  11. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  13. Input the DTC: P211172 or P211173.
  14. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

FAIL-SAFE

When these DTCs are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 7.5° throttle valve opening angle by the return spring. The ECM stops the engine and the vehicle can be driven using solely the hybrid system. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is then turned off.

WIRING DIAGRAM

Refer to DTC P210014.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • Refer to "Data List / Active Test" [Throttle Position Sensor No.1 Voltage, Throttle Position Sensor No.2 Voltage, Throttle Position Command, Throttle Motor Current, Throttle Motor Duty Ratio (Open) and Throttle Motor Duty Ratio (Close)].

    Click here

  • Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P211172 OR P211173)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P211172 or P211173 is output

A

DTC P211172 or P211173 and other DTCs are output

B

HINT:

If any DTCs other than P211172 or P211173 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.

INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)

(a) Check for foreign matter between the throttle valve and housing. If necessary, clean the throttle body with motor assembly. Also check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign matter and moves smoothly.

HINT:

Perform "Inspection After Repair" after cleaning the throttle body with motor assembly.

Click here

NG

GO TO STEP 6

OK

3.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

NEXT

4.

READ VALUE USING TECHSTREAM (THROTTLE POSITION)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Throttle Position Sensor No.1 Voltage, Throttle Position Sensor No.2 Voltage and Throttle Position Command.

Powertrain > Engine > Data List

Tester Display

Throttle Position Sensor No.1 Voltage

Throttle Position Sensor No.2 Voltage

Throttle Position Command

(e) Read the values displayed on the Techstream while wiggling the ECM wire harness.

(f) Enter the following menus: Powertrain / Engine / Trouble Codes.

(g) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

Value in Data List changes when wire harness is wiggled, or DTC is output

A

Other than above

B

B

GO TO STEP 7

A

5.

REPAIR OR REPLACE HARNESS OR CONNECTOR (THROTTLE BODY WITH MOTOR ASSEMBLY - ECM)

(a) As the DTC was stored due to a change in the contact resistance of the connector, repair or replace the wire harness or connector.

Click here

NEXT

END

6.

REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

(a) Replace the throttle body with motor assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

NEXT

7.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

NEXT

8.

CHECK WHETHER DTC OUTPUT RECURS (DTC P211172 OR P211173)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus: Powertrain / Engine / Trouble Codes.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P211172 or P211173 is output

B

A

END

B

REPLACE ECM

    Throttle/Pedal Position Sensor "A" Minimum Stop Performance (P210900)

    Throttle Actuator "A" Control Throttle Body Range/Performance (P211900,P211904,P211977,P21199B)
