COMPONENTS

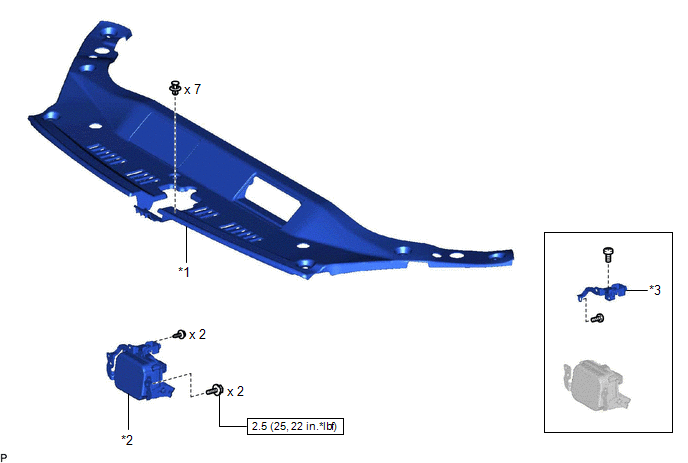

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*3

MILLIMETER WAVE RADAR SENSOR BRACKET SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
