Toyota Avalon Service & Repair Manual: Components

COMPONENTS

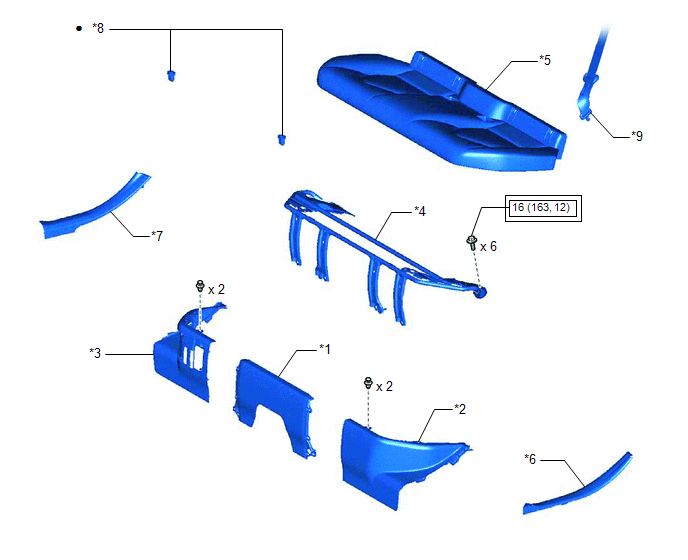

ILLUSTRATION

*1

REAR UNDER COVER

*2

REAR UNDER SIDE COVER LH

*3

REAR UNDER SIDE COVER RH

*4

REAR SEAT CUSHION LEG SUB-ASSEMBLY

*5

REAR SEAT CUSHION ASSEMBLY

*6

REAR DOOR SCUFF PLATE LH

*7

REAR DOOR SCUFF PLATE RH

*8

REAR SEAT CUSHION LOCK HOOK

*9

REAR CENTER SEAT OUTER BELT ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*1

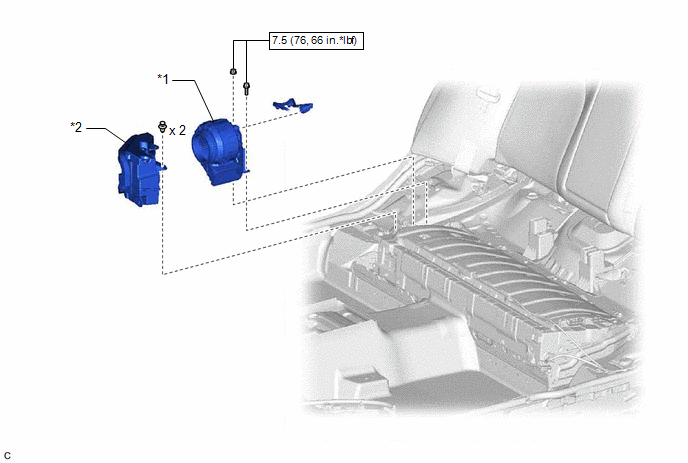

BATTERY COOLING BLOWER ASSEMBLY

*2

NO. 1 HYBRID BATTERY INTAKE DUCT

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

*1

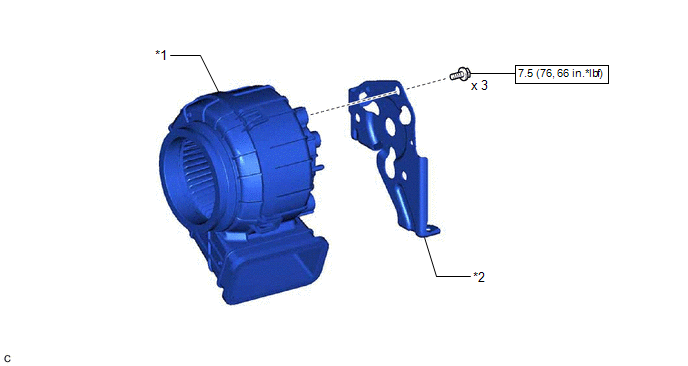

BATTERY COOLING BLOWER ASSEMBLY

*2

BATTERY COOLING BLOWER BRACKET

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Battery Blower

    Installation
