Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

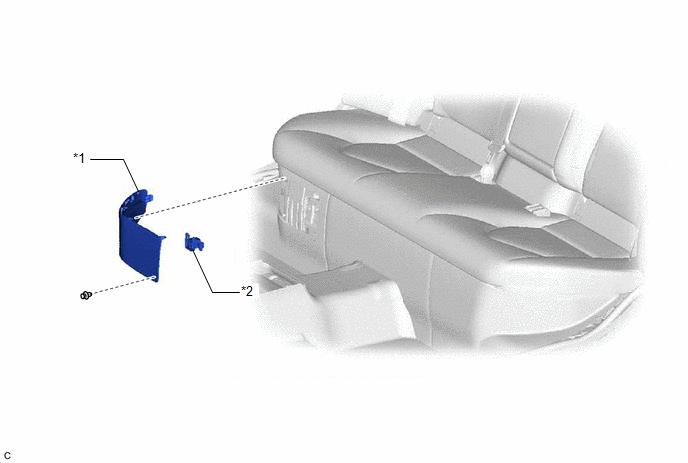

ILLUSTRATION

*1

BATTERY SERVICE HOLE COVER

*2

SERVICE PLUG GRIP

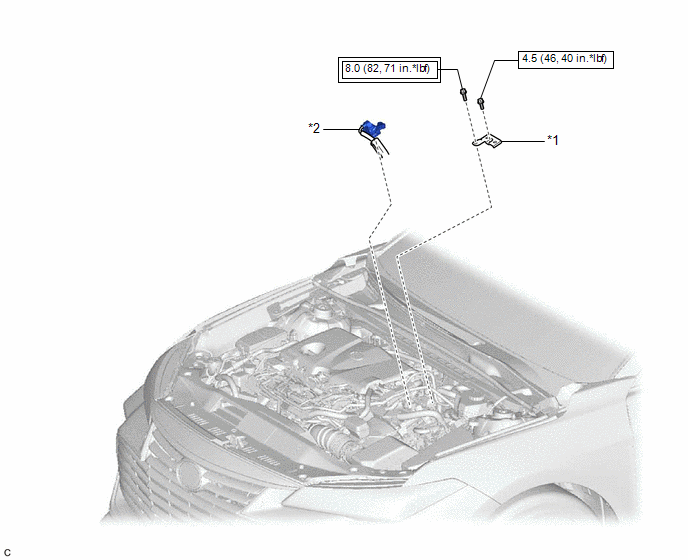

ILLUSTRATION

*1

CONNECTOR COVER ASSEMBLY

*2

ENGINE ROOM MAIN WIRE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

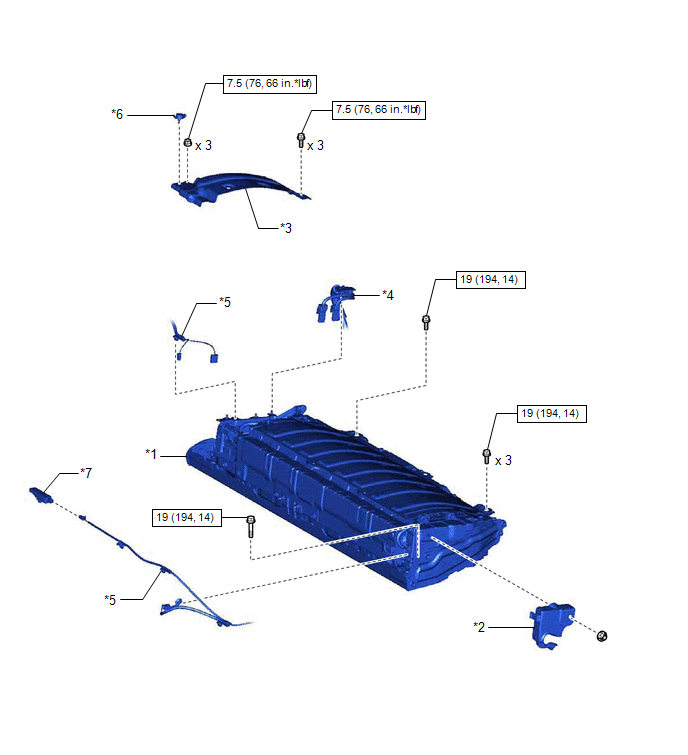

ILLUSTRATION

*1

HV BATTERY

*2

NO. 1 HYBRID BATTERY EXHAUST DUCT

*3

NO. 1 HV BATTERY COVER PANEL RH

*4

HV FLOOR UNDER WIRE

*5

FLOOR WIRE

*6

BATTERY COVER LOCK STRIKER

*7

NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

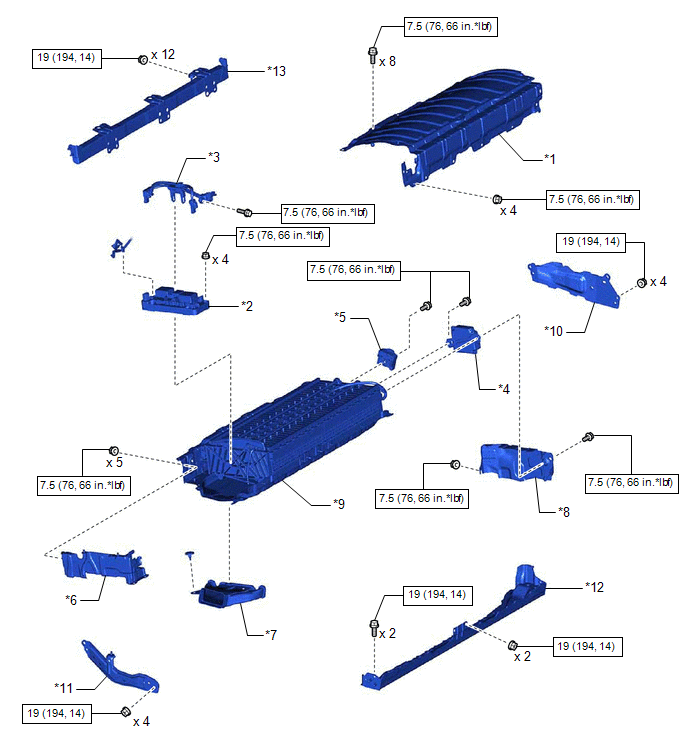

ILLUSTRATION

*1

UPPER HV BATTERY COVER SUB-ASSEMBLY

*2

HV BATTERY JUNCTION BLOCK ASSEMBLY

*3

ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY

*4

BATTERY VOLTAGE SENSOR

*5

HYBRID BATTERY TERMINAL BLOCK

*6

NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY

*7

NO. 1 HV BATTERY INTAKE DUCT LH

*8

NO. 1 HV BATTERY SHIELD PANEL

*9

HV BATTERY

*10

NO. 4 HV BATTERY SHIELD SUB-ASSEMBLY

*11

NO. 3 HV BATTERY SHIELD SUB-ASSEMBLY

*12

NO. 4 HV BATTERY END PLATE SUB-ASSEMBLY

*13

NO. 5 HV BATTERY END PLATE SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Charging

    Installation
