Toyota Avalon Service & Repair Manual: Illumination for Panel Switch does not Come on with Tail Switch ON

Toyota Avalon Service & Repair Manual / Audio, Visual, Telematics / Audio / Video / Audio And Visual System(for Gasoline Model) / Illumination for Panel Switch does not Come on with Tail Switch ON

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio and display receiver assembly may not operate normally.

PROCEDURE

1.

CHECK VEHICLE SIGNAL (OPERATION CHECK)

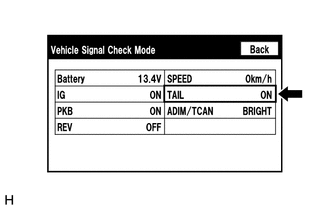

(a) Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check.

Click here

(b) Check that the display changes between ON and OFF according to the light control switch operation.

OK:

Light Control Switch

Display

Tail or head

ON

Off or AUTO

OFF

HINT:

  • This display is updated once per second. As a result, it is normal for the display to lag behind the actual switch operation.
  • Make sure to move the vehicle to a bright area before performing an operation check with the light control switch in the AUTO position.
OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
