PARTS LOCATION

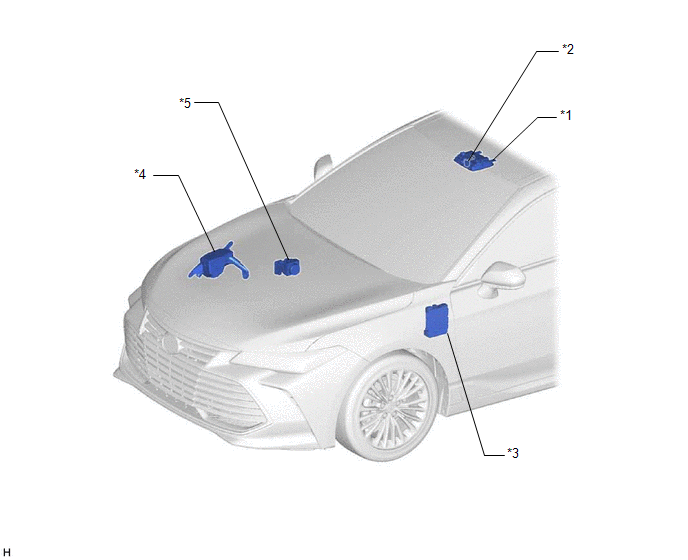

ILLUSTRATION

ROOF CONSOLE BOX SUB-ASSEMBLY

TELEPHONE MICROPHONE ASSEMBLY

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-ACC FUSE

- ECU-DCC NO. 2 FUSE

- ECU-IG1 NO. 4 FUSE

- ECU-IG2 NO. 3 FUSE (w/ Manual (SOS) Switch)

- DCM FUSE (w/ Manual (SOS) Switch)

- PANEL FUSE

- METER-IG2 FUSE

- RADIO FUSE

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- AMP NO. 1 FUSE (for 14 Speakers)

- AMP NO. 2 FUSE (for 14 Speakers)

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

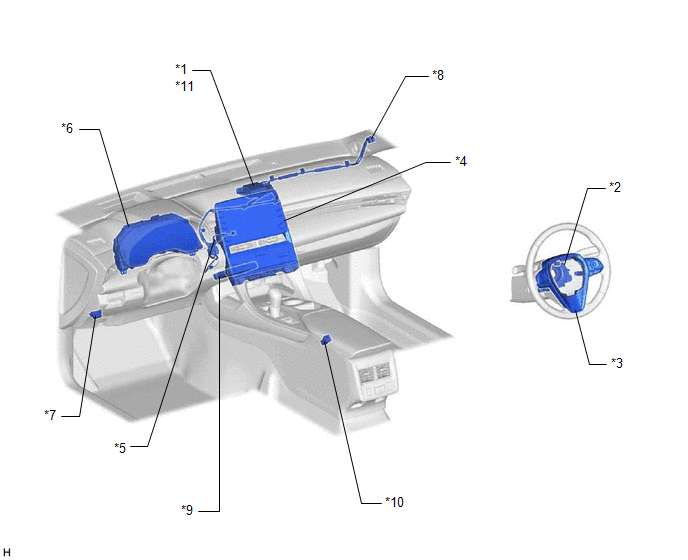

ILLUSTRATION

*1	NAVIGATION ANTENNA ASSEMBLY	*2	SPIRAL CABLE SUB-ASSEMBLY
*3	STEERING PAD SWITCH ASSEMBLY	*4	RADIO AND DISPLAY RECEIVER ASSEMBLY
*5	NO. 5 ANTENNA CORD SUB-ASSEMBLY	*6	COMBINATION METER ASSEMBLY
*7	DLC3	*8	NO. 4 ANTENNA CORD SUB-ASSEMBLY
*9	DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)	*10	STEREO JACK ADAPTER ASSEMBLY
*11	- GPS	-	-

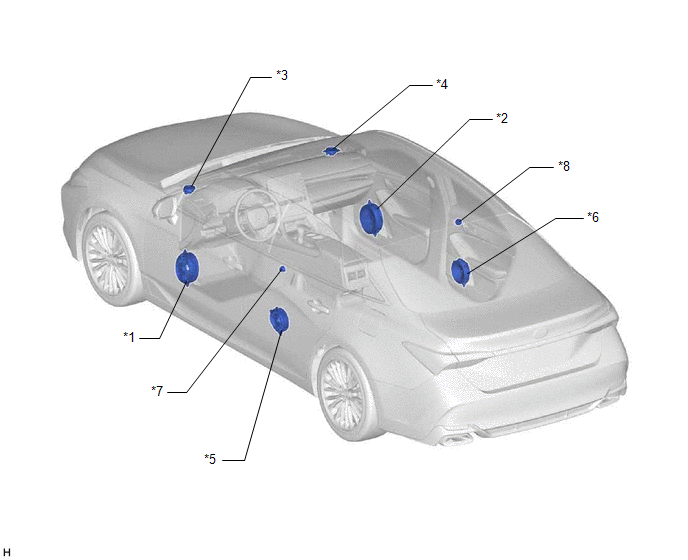

ILLUSTRATION

for 8 Speakers

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 2 SPEAKER ASSEMBLY LH	*4	FRONT NO. 2 SPEAKER ASSEMBLY RH
*5	REAR SPEAKER ASSEMBLY LH	*6	REAR SPEAKER ASSEMBLY RH
*7	REAR NO. 2 SPEAKER ASSEMBLY LH	*8	REAR NO. 2 SPEAKER ASSEMBLY RH

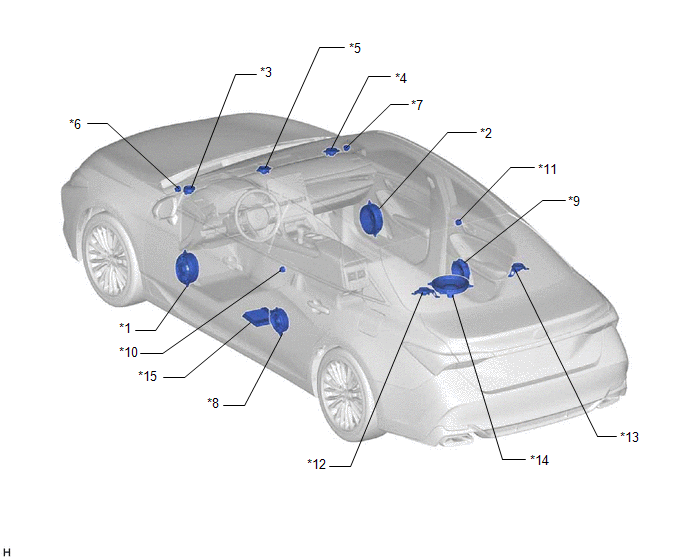

ILLUSTRATION

for 14 Speakers

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 2 SPEAKER ASSEMBLY LH	*4	FRONT NO. 2 SPEAKER ASSEMBLY RH
*5	FRONT NO. 4 SPEAKER ASSEMBLY	*6	FRONT NO. 3 SPEAKER ASSEMBLY LH
*7	FRONT NO. 3 SPEAKER ASSEMBLY RH	*8	REAR SPEAKER ASSEMBLY LH
*9	REAR SPEAKER ASSEMBLY RH	*10	REAR NO. 2 SPEAKER ASSEMBLY LH
*11	REAR NO. 2 SPEAKER ASSEMBLY RH	*12	SPEAKER ASSEMBLY WITH BRACKET LH
*13	SPEAKER ASSEMBLY WITH BRACKET RH	*14	REAR NO. 3 SPEAKER ASSEMBLY
*15	STEREO COMPONENT AMPLIFIER ASSEMBLY	-	-

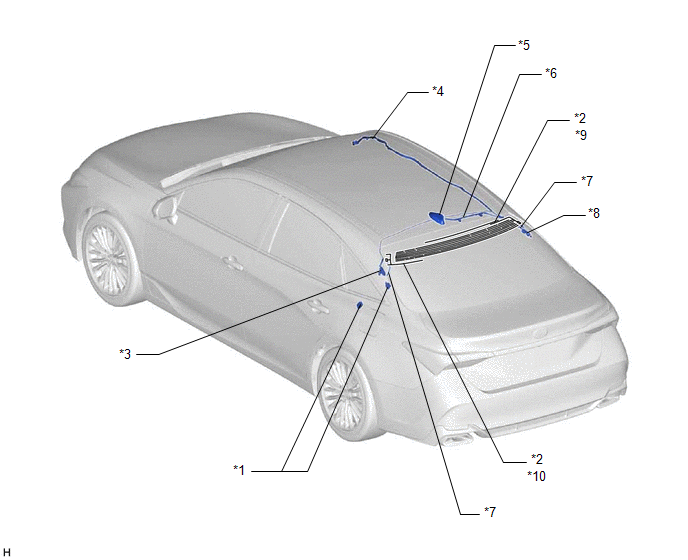

ILLUSTRATION

*1	RADIO SETTING CONDENSOR	*2	WINDOW GLASS ANTENNA WIRE
*3	NO. 2 AMPLIFIER ANTENNA ASSEMBLY	*4	NO. 3 ANTENNA CORD SUB-ASSEMBLY
*5	TELEPHONE ANTENNA ASSEMBLY (w/ SXM Function) - SiriusXM	*6	NO. 2 ANTENNA CORD SUB-ASSEMBLY (w/ SXM Function)
*7	ANTENNA CORD SUB-ASSEMBLY	*8	NO. 1 AMPLIFIER ANTENNA ASSEMBLY
*9	- FM Main - AM	*10	- FM Sub
