Toyota Avalon Service & Repair Manual: Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL HOOD STAY BRACKET LH

Click here

2. INSTALL HOOD SUPPORT ASSEMBLY LH

Click here

3. INSTALL HOOD STAY BRACKET RH

HINT:

Use the same procedure as for the LH side.

4. INSTALL HOOD SUPPORT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

5. CONNECT WASHER HOSE ASSEMBLY

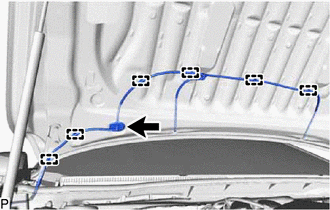

(a) Engage the grommet.

(b) Engage the 6 clamps to connect the washer hose assembly.

6. INSTALL WASHER NOZZLE SUB-ASSEMBLY

Click here

7. INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click here

8. ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click here

9. INSTALL HOOD INSULATOR

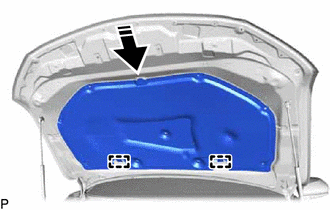

(a) Engage the 2 guides as shown in the illustration.

Install in this Direction

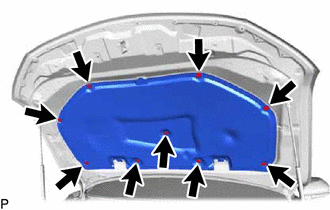

(b) Install the hood insulator with 9 new hood insulator clips.

10. INSTALL HOOD TO RADIATOR SUPPORT SEAL

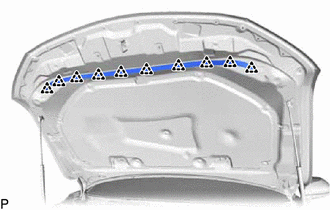

(a) Install the hood to radiator support seal with 10 new hood to radiator support seal clips.
