Toyota Avalon Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door belt moulding assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Front door glass sub-assembly

Initialize power window control system

  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for HV Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Front door glass sub-assembly

Initialize power window control system

  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

Click here

3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for A25A-FXS:

Click here

for 2GR-FKS:

Click here

4. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

Click here

5. REMOVE FRONT DOOR TRIM POCKET COVER

Click here

6. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

7. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

8. REMOVE COURTESY LIGHT ASSEMBLY

Click here

9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

10. REMOVE FRONT DOOR TRIM BRACKET

Click here

11. REMOVE FRONT DOOR SERVICE HOLE COVER

Click here

12. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

Click here

13. REMOVE FRONT DOOR VENT SEAL

Click here

14. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

Click here

15. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

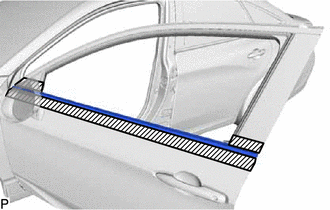

(a) Apply protective tape around the front door belt moulding assembly as shown in the illustration.

Protective Tape

Remove in this Direction

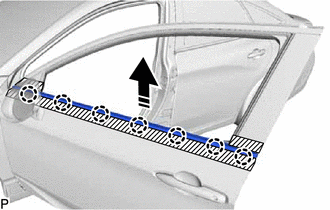

(b) Disengage the 7 claws to remove the front door belt moulding assembly as shown in the illustration.

    Installation

    Front Door Window Frame Moulding
