Toyota Avalon Service & Repair Manual: High Mounted Stop Light Assembly

Toyota Avalon Service & Repair Manual / Vehicle Exterior / Lighting (ext) / High Mounted Stop Light Assembly

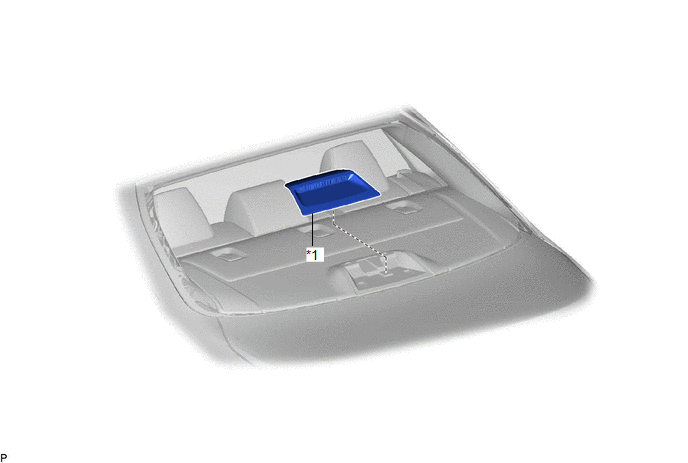

Components

COMPONENTS

ILLUSTRATION

*1

CENTER STOP LIGHT SET

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT CENTER STOP LIGHT SET

*a

Component without harness connected

(Center Stop Light Set)

(a) Apply auxiliary battery voltage to the center stop light set and check that the light illuminates.

OK:

Measurement Condition

Specified Condition

Auxiliary battery positive (+) → Terminal 1 (B)

Auxiliary battery negative (-) → Terminal 2 (E)

Center stop light illuminates

If the result is not as specified, replace the center stop light set.

Installation

INSTALLATION

PROCEDURE

1. INSTALL CENTER STOP LIGHT SET

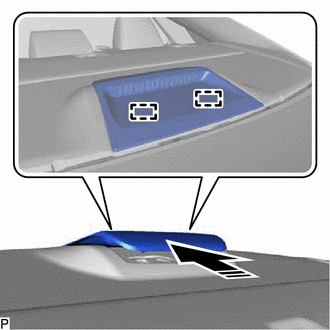

(a) Engage the 2 guides as shown in the illustration.

Install in this Direction

(b) Connect the connector.

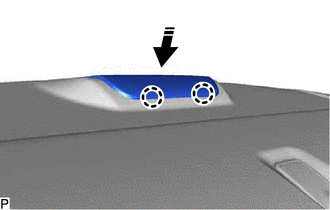

(c) Engage the 2 claws as shown in the illustration to install the center stop light set.

Install in this Direction

Removal

REMOVAL

PROCEDURE

1. REMOVE CENTER STOP LIGHT SET

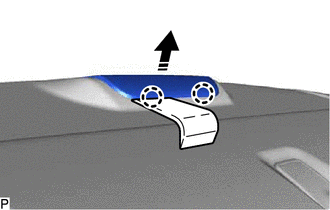

(a) Using a moulding remover, disengage the 2 claws as shown in the illustration.

Remove in this Direction

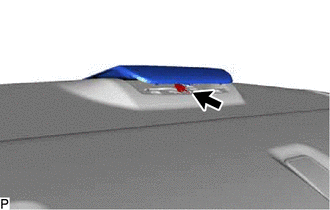

(b) Disconnect the connector.

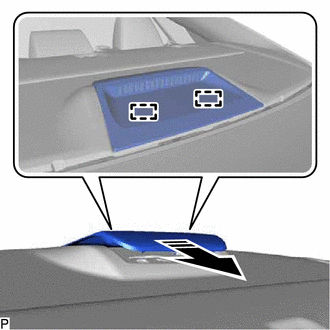

(c) Disengage the 2 guides as shown in the illustration to remove the center stop light set.

Remove in this Direction
