Toyota Avalon Owners Manual: Inside rear view mirror

The rear view mirror's position can be adjusted to enable sufficient confirmation of the rear view.

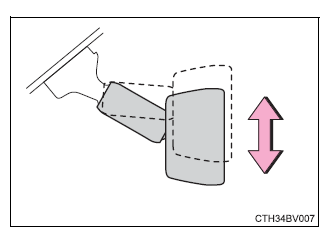

Adjusting the height of rear view mirror

The height of the rear view mirror can be adjusted to suit your driving posture.

Adjust the height of the rear view mirror by moving it up and down.

Anti-glare function

Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced.

Vehicles with garage door opener

Adjusting the steering wheel and mirrors

Vehicles without garage door opener

Adjusting the steering wheel and mirrors

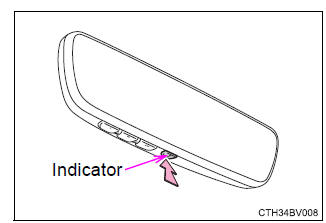

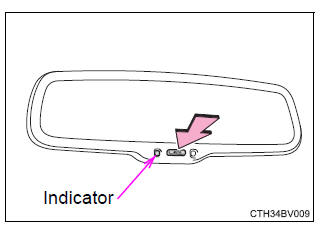

Changing automatic anti-glare function mode

On/off

When the automatic anti-glare function is in ON mode, the indicator illuminates.

The function will set to ON mode each time the engine switch is turned to IGNITION ON mode.

Pressing the button turns the function to OFF mode. (The indicator also turns off.)

■To prevent sensor error

Vehicles without garage door opener

To ensure that the sensors operate properly, do not touch or cover them.

Vehicles with garage door opener

To ensure that the sensors operate properly, do not touch or cover them.

WARNING

Do not adjust the position of the mirror while driving.

Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.

    Steering wheel

    Outside rear view mirrors
