Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

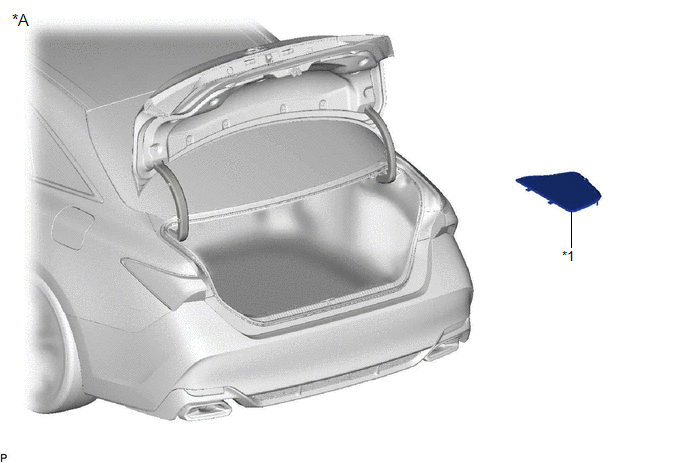

ILLUSTRATION

*A

for HV Model

-

-

*1

LUGGAGE TRIM SERVICE HOLE COVER

-

-

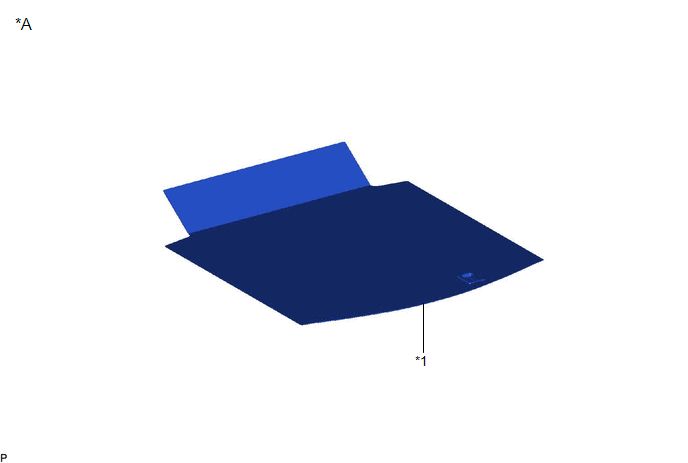

ILLUSTRATION

*A

w/ Seat Heater System

-

-

*1

SPARE WHEEL COVER ASSEMBLY

-

-

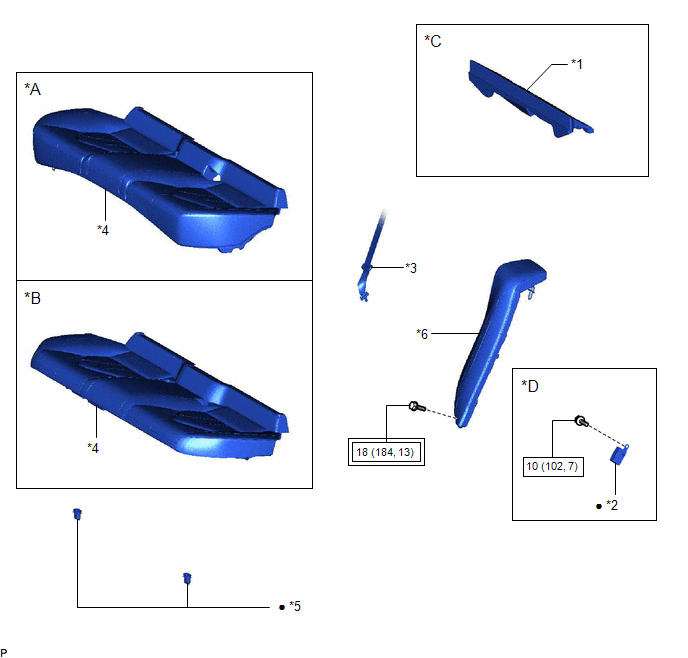

ILLUSTRATION

*A

for Gasoline Model

*B

for HV Model

*C

w/ Seat Heater System

*D

for High Mounted Stop Light

*1

LUGGAGE COMPARTMENT INNER TRIM PAD

*2

RADIO SETTING CONDENSER

*3

REAR CENTER SEAT OUTER BELT ASSEMBLY

*4

REAR SEAT CUSHION ASSEMBLY

*5

REAR SEAT CUSHION LOCK HOOK

*6

REAR SIDE SEATBACK ASSEMBLY LH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

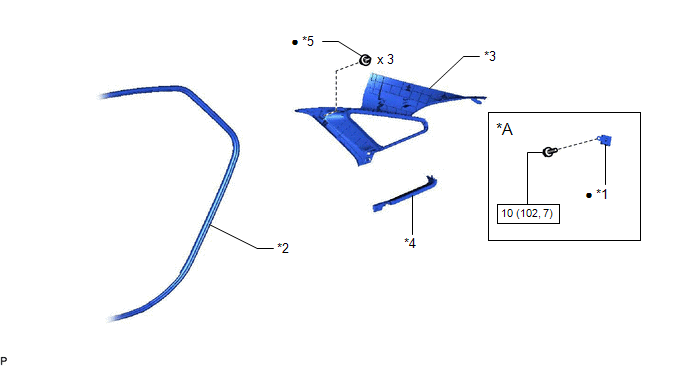

ILLUSTRATION

*A

for Window Defogger

-

-

*1

RADIO SETTING CONDENSER

*2

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*3

ROOF SIDE INNER GARNISH LH

*4

ROOF SIDE RAIL GARNISH ASSEMBLY LH

*5

CLIP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

    Noise Filter

    Installation
