Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

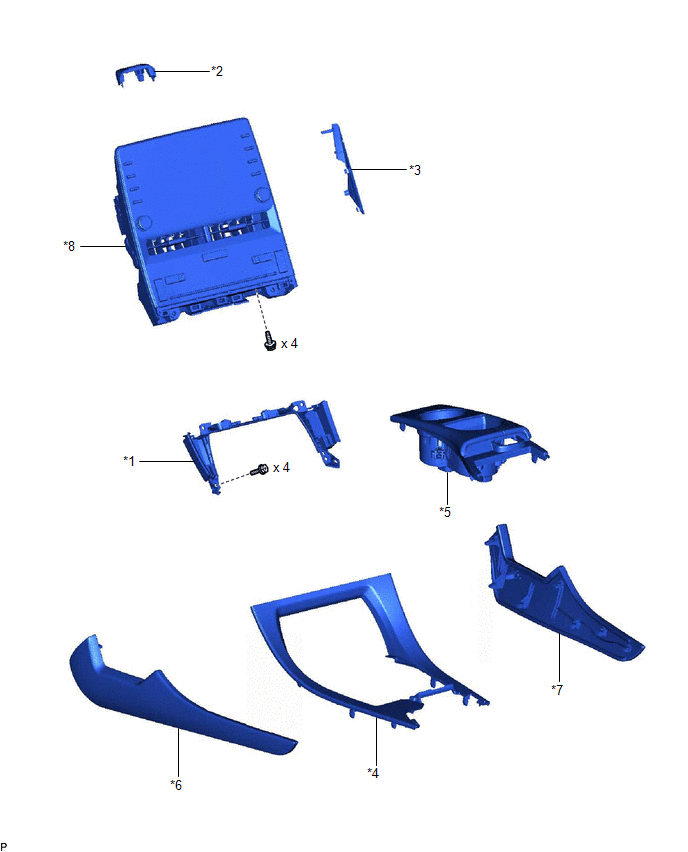

ILLUSTRATION

*1

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*3

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*4

CONSOLE BOX POCKET SUB-ASSEMBLY

*5

FRONT CONSOLE UPPER PANEL GARNISH

*6

LOWER INSTRUMENT PANEL FINISH PANEL LH

*7

LOWER INSTRUMENT PANEL FINISH PANEL RH

*8

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

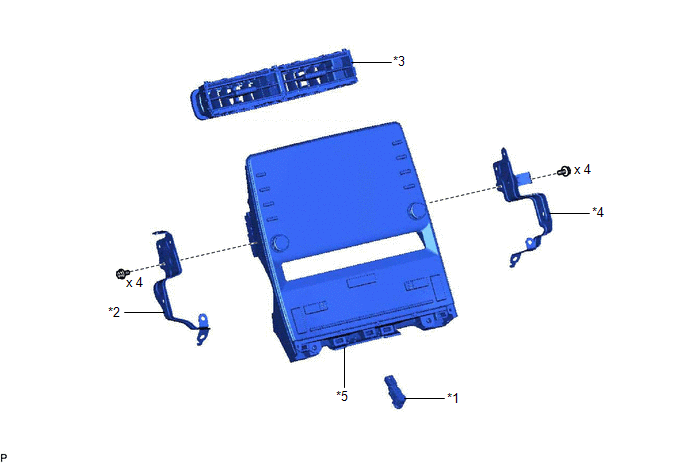

ILLUSTRATION

*1

INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

*2

NO. 1 RADIO RECEIVER BRACKET

*3

NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

*4

NO. 2 RADIO RECEIVER BRACKET

*5

RADIO AND DISPLAY RECEIVER ASSEMBLY

-

-

    Radio Receiver

    Installation
