Toyota Avalon Service & Repair Manual: Air Conditioning Filter

Components

COMPONENTS

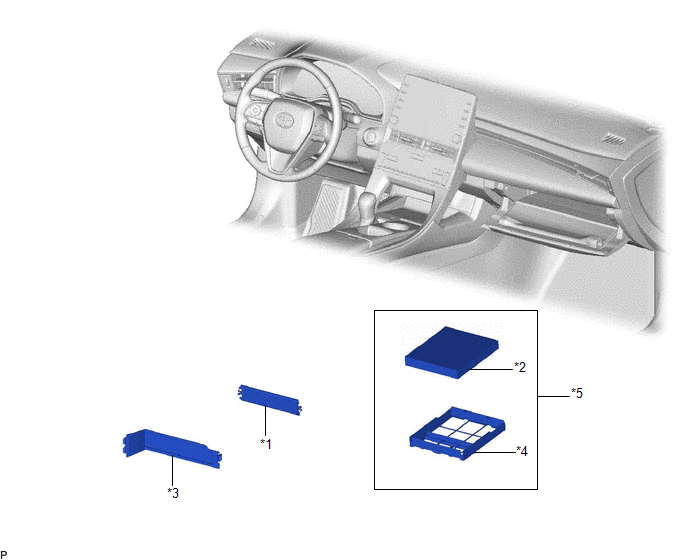

ILLUSTRATION

*1

AIR FILTER COVER PLATE

*2

CLEAN AIR FILTER

*3

LOWER INSTRUMENT COVER LH

*4

AIR FILTER CASE

*5

AIR FILTER SUB-ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL CLEAN AIR FILTER

Click here

2. INSTALL AIR FILTER COVER PLATE

Click here

3. INSTALL LOWER INSTRUMENT COVER LH

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE LOWER INSTRUMENT COVER LH

Click here

2. REMOVE AIR FILTER COVER PLATE

Click here

3. REMOVE CLEAN AIR FILTER

Click here
