Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Air Conditioning Amplifier

Components

COMPONENTS

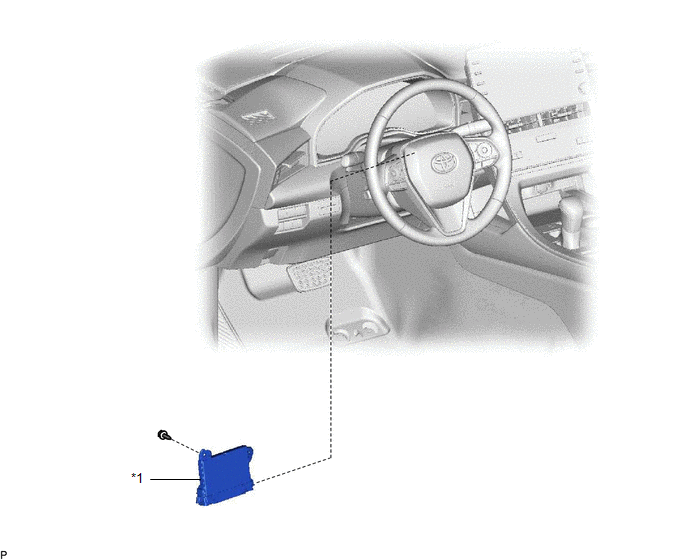

ILLUSTRATION

*1

AIR CONDITIONING AMPLIFIER ASSEMBLY

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Connect each connector.

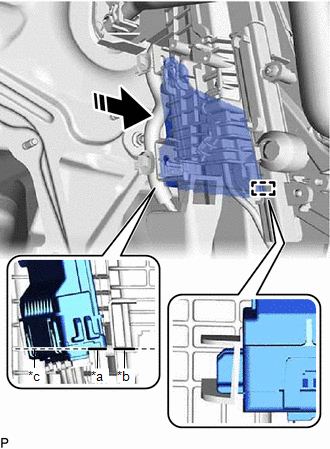

(b) Align the lower part of the air conditioning amplifier assembly with the rib of the air conditioner unit assembly and engage the guide as shown in the illustration.

*a

Lower Part of Air Conditioning Amplifier Assembly

*b

Rib of Air Conditioner Unit Assembly

*c

Align

Install in this Direction

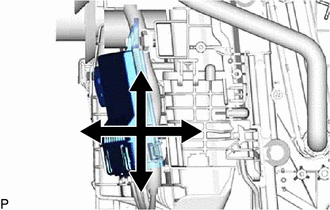

(c) Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.

(d) Install the air conditioning amplifier assembly with the screw.

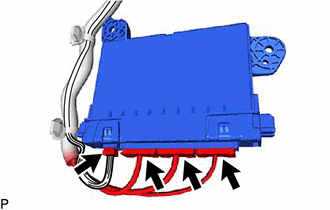

(e) Engage each clamp.

2. INSTALL ACCELERATOR PEDAL (for 2GR-FKS)

Click here

3. INSTALL ACCELERATOR PEDAL SENSOR ASSEMBLY (for A25A-FXS)

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY (for A25A-FXS)

Click here

2. REMOVE ACCELERATOR PEDAL (for 2GR-FKS)

Click here

3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

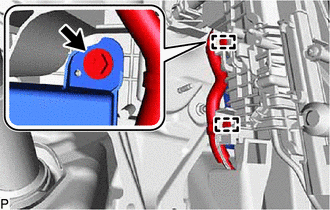

(a) Disengage each clamp.

(b) Remove the screw.

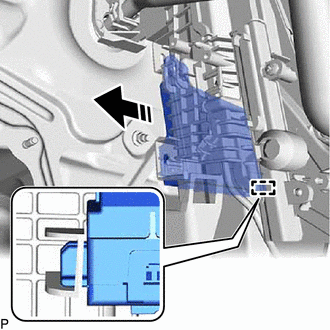

(c) Disengage the guide as shown in the illustration.

Remove in this Direction

(d) Disconnect each connector to remove the air conditioning amplifier assembly.
