Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TELEPHONE ANTENNA ASSEMBLY

(a) When reusing the telephone antenna assembly:

(1) Install a new seal.

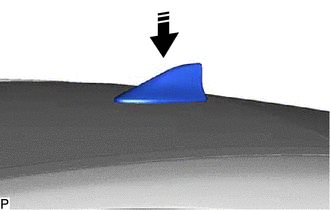

(b) Push the telephone antenna assembly in the direction indicated by the arrow (1) shown in the illustration to engage the guide.

Install in this Direction (1)

Install in this Direction (2)

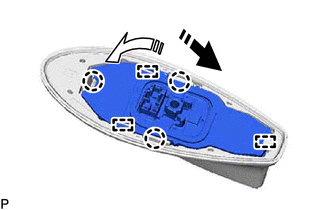

(c) Push the telephone antenna assembly in the direction indicated by the arrow (2) shown in the illustration to engage the 2 guides and 3 claws and install the telephone antenna assembly.

2. INSTALL TELEPHONE ANTENNA ASSEMBLY WITH COVER

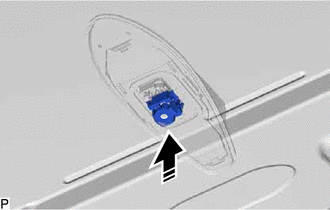

(a) Temporarily install the telephone antenna assembly with cover as shown in the illustration.

Install in this Direction

(b) Install a new washer and holder as shown in the illustration.

Install in this Direction

(c) Install the telephone antenna assembly with cover with the bolt.

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

(d) Connect the connector.

3. INSTALL ROOF HEADLINING ASSEMBLY

Click here

    Components

    Removal
