Components

COMPONENTS

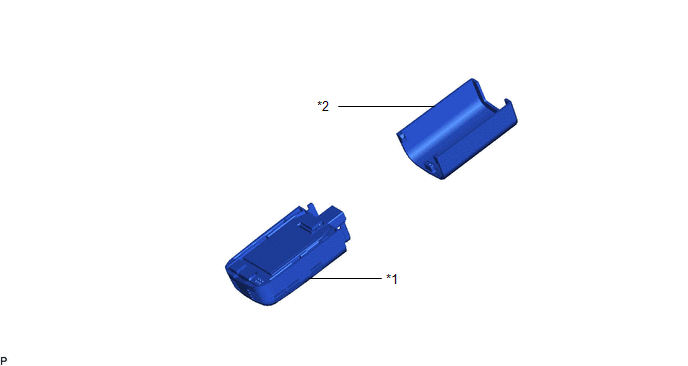

ILLUSTRATION

*1

AIR CONDITIONING THERMISTOR ASSEMBLY

*2

SENSOR COVER

Installation

INSTALLATION

PROCEDURE

1. INSTALL AIR CONDITIONING THERMISTOR ASSEMBLY

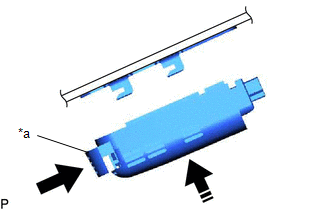

(a) Temporarily install the air conditioning thermistor assembly to the windshield glass as shown in the illustration.

*a

Stopper

Lock

Install in this Direction

(b) Push in the stopper to install the air conditioning thermistor assembly as shown in the illustration.

(c) Connect the connector.

2. INSTALL SENSOR COVER

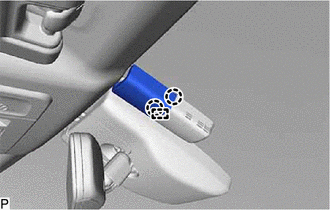

(a) Engage the guide and 2 claws to install the sensor cover.

Removal

REMOVAL

PROCEDURE

1. REMOVE SENSOR COVER

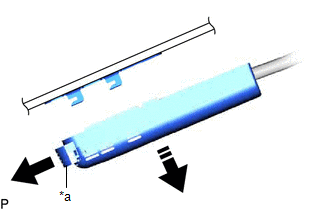

(a) Release the stopper by pulling it out as shown in the illustration.

*a

Stopper

Release

Remove in this Direction

(b) Disconnect the air conditioning thermistor assembly with sensor cover from the windshield glass as shown in the illustration.

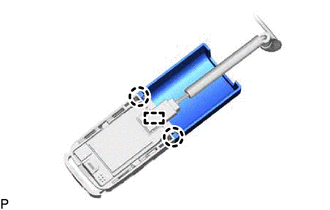

(c) Disengage the 2 claws and guide to remove the sensor cover.

2. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY

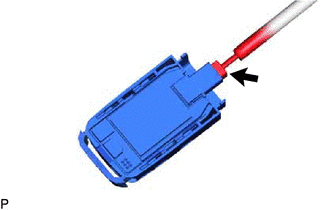

(a) Disconnect the connector to remove the air conditioning thermistor assembly.
    Removal
