Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

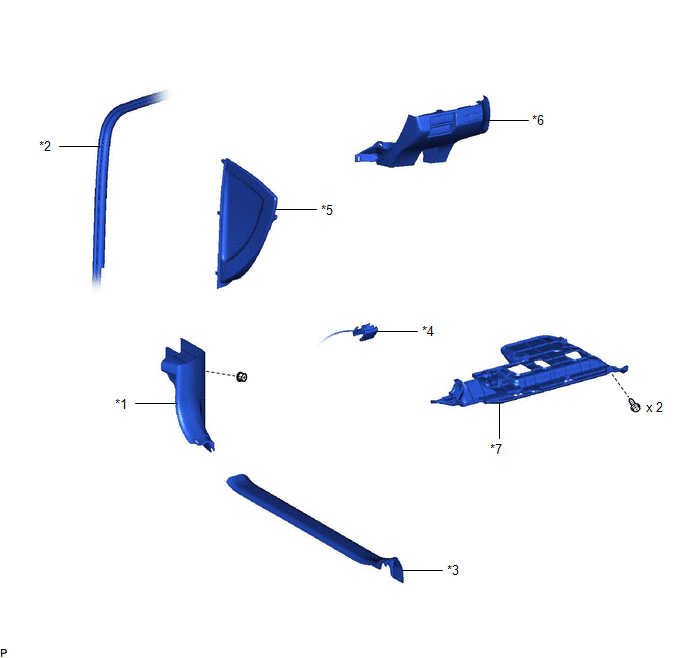

ILLUSTRATION

*1

COWL SIDE TRIM SUB-ASSEMBLY LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*3

FRONT DOOR SCUFF PLATE LH

*4

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

*5

INSTRUMENT SIDE PANEL LH

*6

NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

*7

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

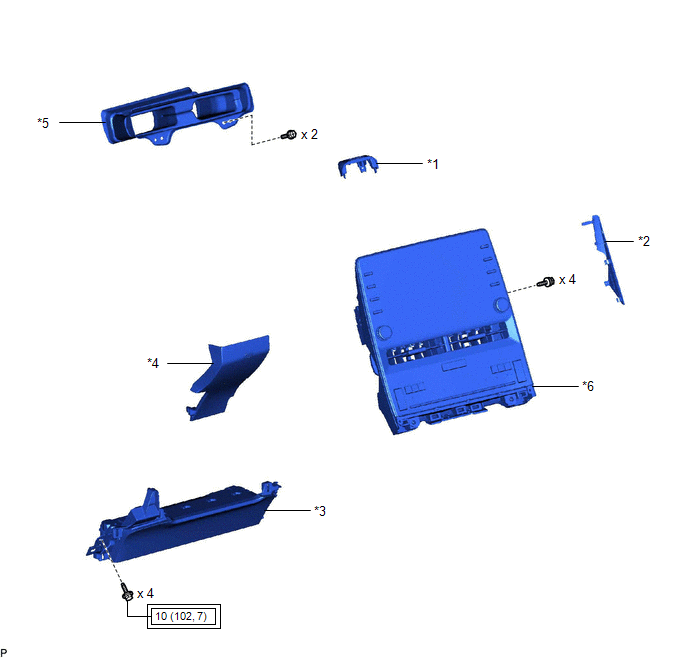

ILLUSTRATION

*1

CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

*2

CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

*3

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

*4

LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

*5

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*6

RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

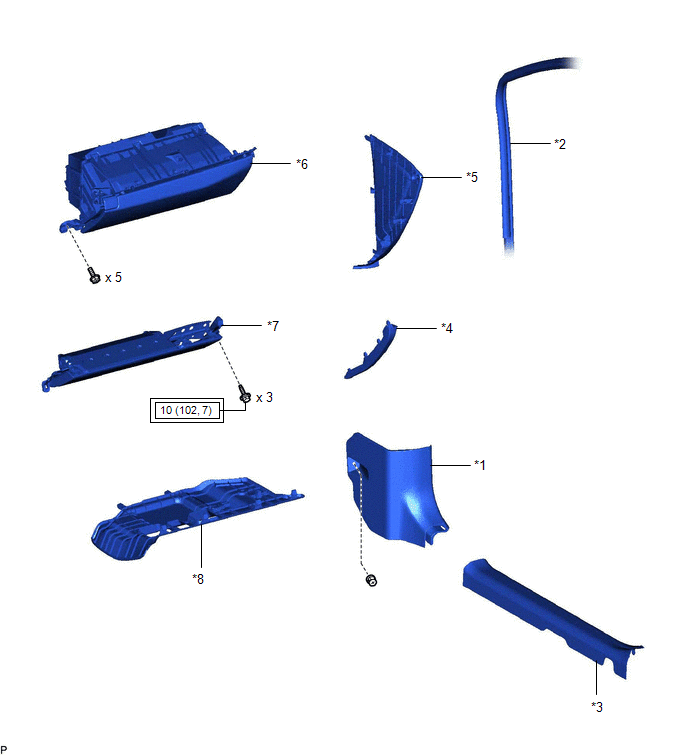

ILLUSTRATION

*1

COWL SIDE TRIM SUB-ASSEMBLY RH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*3

FRONT DOOR SCUFF PLATE RH

*4

GLOVE COMPARTMENT PLATE

*5

INSTRUMENT SIDE PANEL RH

*6

LOWER INSTRUMENT PANEL SUB-ASSEMBLY

*7

LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

*8

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

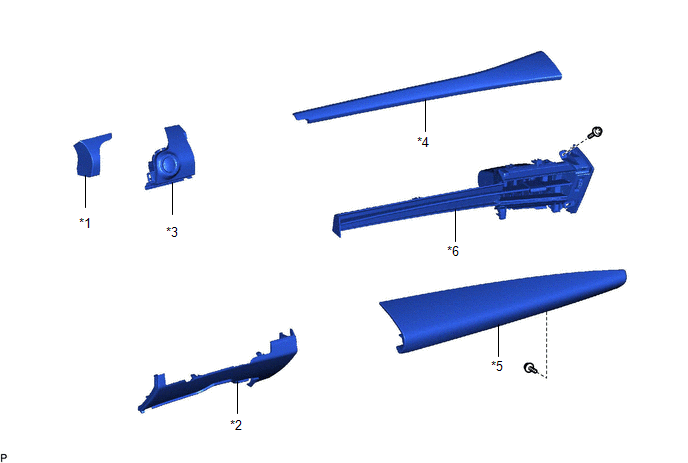

ILLUSTRATION

*1

INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

*2

LOWER CENTER INSTRUMENT PANEL FINISH PANEL

*3

LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

*4

NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

*5

NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

*6

NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

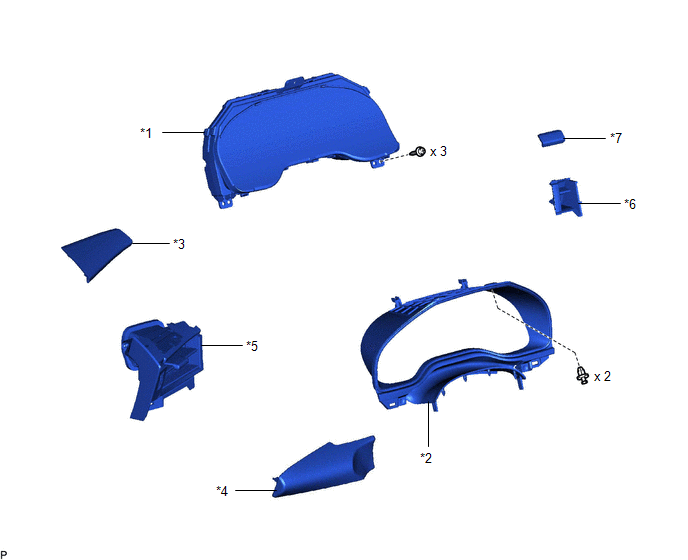

ILLUSTRATION

*1

COMBINATION METER ASSEMBLY

*2

INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*3

NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

*4

NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

*5

NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

*6

NO. 2 INSTRUMENT CLUSTER MOULDING

*7

NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH

-

-

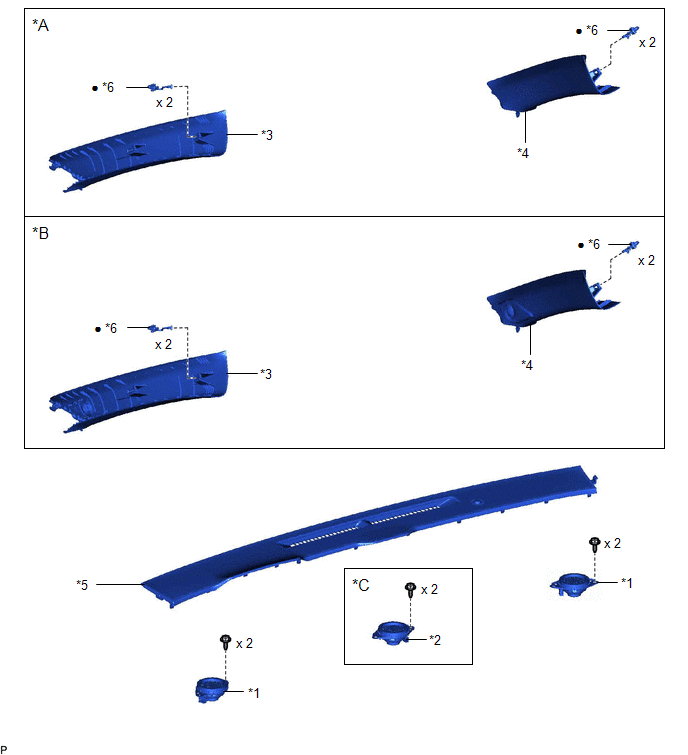

ILLUSTRATION

*A

w/o Front No. 3 Speaker

*B

w/ Front No. 3 Speaker

*C

for 14 Speakers

-

-

*1

FRONT NO. 2 SPEAKER ASSEMBLY

*2

FRONT NO. 4 SPEAKER ASSEMBLY

*3

FRONT PILLAR GARNISH LH

*4

FRONT PILLAR GARNISH RH

*5

NO. 1 DEFROSTER NOZZLE GARNISH

*6

FRONT PILLAR GARNISH CLIP

Non-reusable part

-

-

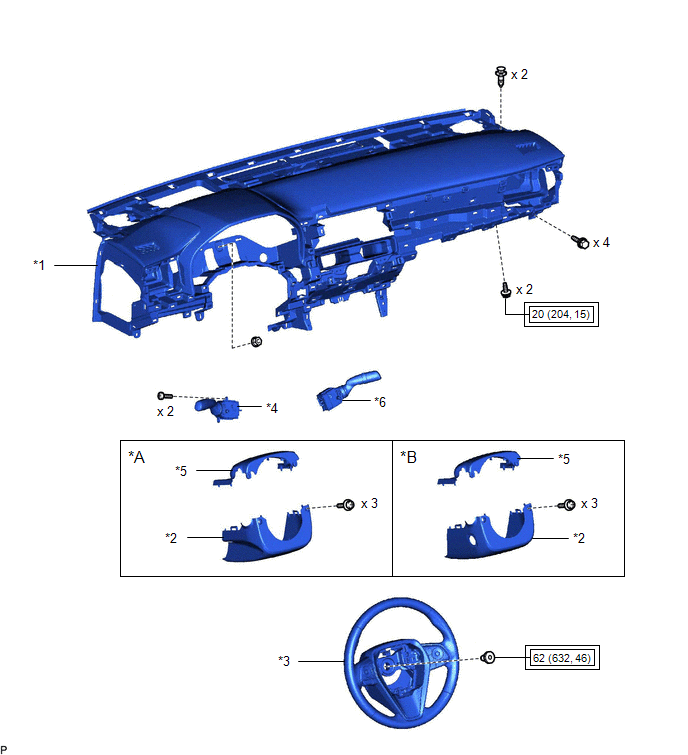

ILLUSTRATION

*A

for Manual Tilt and Manual Telescopic Steering Column

*B

for Power Tilt and Power Telescopic Steering Column

*1

INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

*2

LOWER STEERING COLUMN COVER

*3

STEERING WHEEL ASSEMBLY

*4

TURN SIGNAL SWITCH

*5

UPPER STEERING COLUMN COVER

*6

WINDSHIELD WIPER SWITCH ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

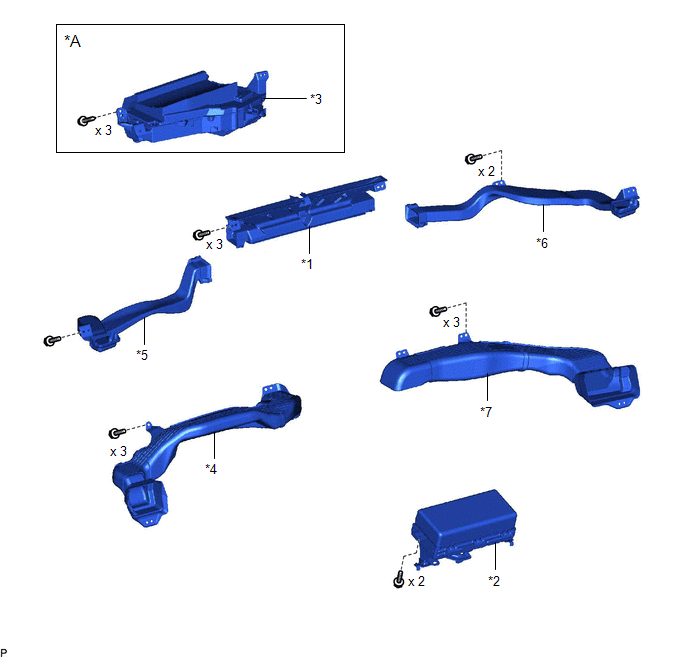

ILLUSTRATION

*A

w/ Headup Display

-

-

*1

DEFROSTER NOZZLE ASSEMBLY

*2

INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

*3

METER MIRROR SUB-ASSEMBLY

*4

NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

*5

NO. 1 SIDE DEFROSTER NOZZLE DUCT

*6

NO. 2 SIDE DEFROSTER NOZZLE DUCT

*7

NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

-

-

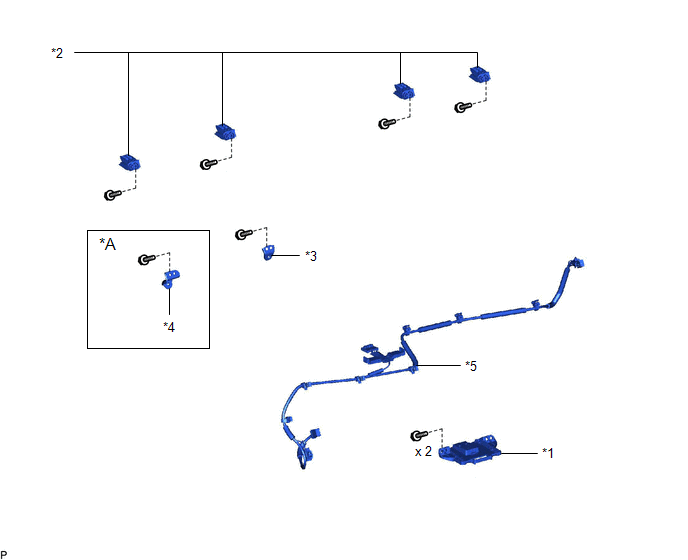

ILLUSTRATION

*A

w/ Headup Display

-

-

*1

NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

*2

NO. 1 INSTRUMENT PANEL PIN

*3

NO. 1 METER BRACKET SUB-ASSEMBLY

*4

NO. 2 METER BRACKET SUB-ASSEMBLY

*5

NO. 4 ANTENNA CORD SUB-ASSEMBLY

-

-

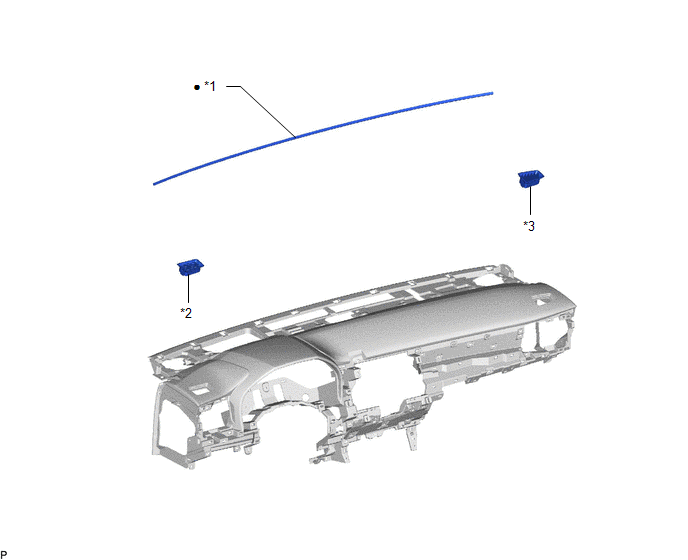

ILLUSTRATION

*1

INSTRUMENT PANEL CUSHION

*2

NO. 1 SIDE DEFROSTER NOZZLE

*3

NO. 2 SIDE DEFROSTER NOZZLE

-

-

Non-reusable part

-

-

    Instrument Panel Safety Pad

    Disassembly
