Toyota Avalon Service & Repair Manual: Back Door Courtesy Switch

Toyota Avalon Service & Repair Manual / Vehicle Interior / Lighting (int) / Back Door Courtesy Switch

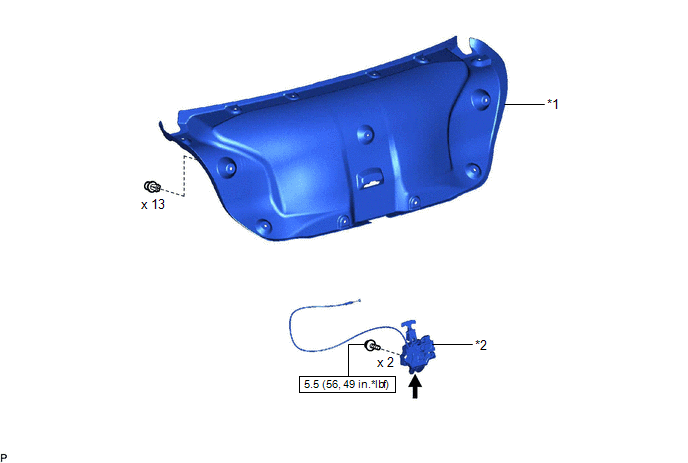

Components

COMPONENTS

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR COVER

*2

LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

Inspection

INSPECTION

PROCEDURE

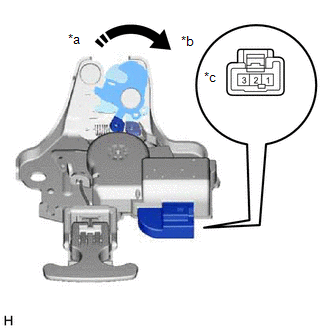

1. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

(a) Check the operation of the door lock motor.

(1) Move the door lock to the close (lock) position.

*a

Close (Lock)

*b

Open (Unlock)

*c

Component without harness connected

(Luggage Compartment Door Lock Assembly)

(2) Apply auxiliary battery voltage to the door lock motor and check the operation of the door lock motor.

OK:

Auxiliary Battery Connection

Result

Auxiliary battery positive (+) → Terminal 1

Auxiliary battery negative (-) → Terminal 2

Luggage compartment door lock motor open (unlock) operation

If the result is not as specified, replace the luggage compartment door lock assembly.

(b) Check the operation of the luggage compartment door courtesy switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 - 3

Closed (Locked)

10 kΩ or higher

2 - 3

Open (Unlocked)

Below 1 Ω

If the result is not as specified, replace the luggage compartment door lock assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Click here

2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Click here

    Removal

    Console Box Light
