Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Front Console Light

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Interior / Lighting (int) / Front Console Light

Components

COMPONENTS

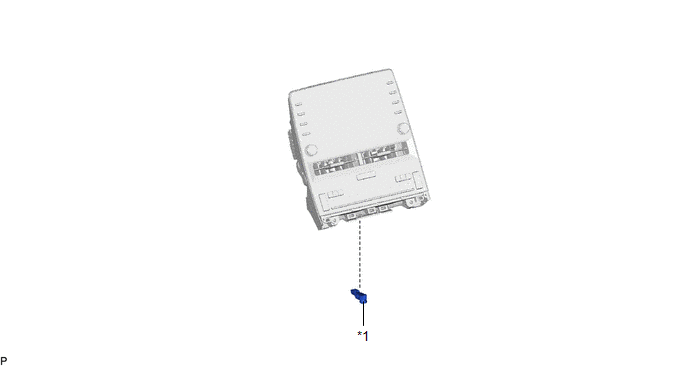

ILLUSTRATION

INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

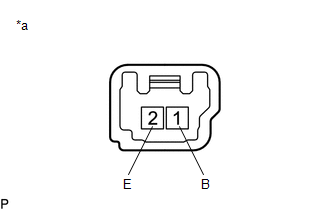

*a	Component without harness connected (Interior Illumination Light Sub-assembly)

(a) Apply auxiliary battery voltage to the interior illumination light sub-assembly and check that the light illuminates.

OK:

Measurement Condition

Specified Condition

Auxiliary battery positive (+) → 1 (B)

Auxiliary battery negative (-) → 2 (E)

Front console light illuminates

If the result is not as specified, replace the interior illumination light sub-assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

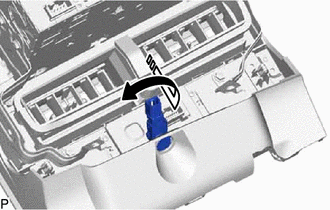

(a) Turn the interior illumination light sub-assembly as shown in the illustration to install it.

Install in this Direction

2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

Click here

2. REMOVE INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

(a) Turn the interior illumination light sub-assembly as shown in the illustration to remove it.

Remove in this Direction
