Toyota Avalon Service & Repair Manual: Room Light

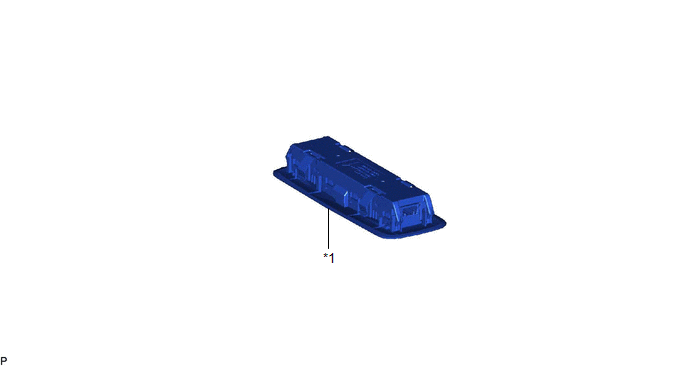

Components

COMPONENTS

ILLUSTRATION

*1

SPOT LIGHT ASSEMBLY

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT SPOT LIGHT ASSEMBLY

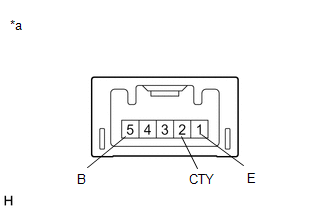

*a

Component without harness connected

(Spot Light Assembly)

(a) Apply auxiliary battery voltage to the spot light assembly and check that the lights illuminate.

OK:

Measurement Condition

Condition

Specified Condition

Auxiliary battery positive (+) → 5 (B)

Auxiliary battery negative (-) → 1 (E)

Spot light switch LH on

Spot light LH illuminates

Spot light switch RH on

Spot light RH illuminates

Auxiliary battery positive (+) → 5 (B)

Auxiliary battery negative (-) → 2 (CTY)

Spot light switch LH off

Spot light LH illuminates

Spot light switch RH off

Spot light RH illuminates

If the result is not as specified, replace the spot light assembly.

Installation

INSTALLATION

PROCEDURE

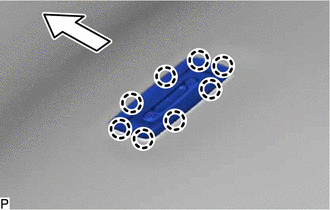

1. INSTALL SPOT LIGHT ASSEMBLY

(a) Connect the connector.

(b) Engage the 8 claws to install the spot light assembly.

Front

Removal

REMOVAL

PROCEDURE

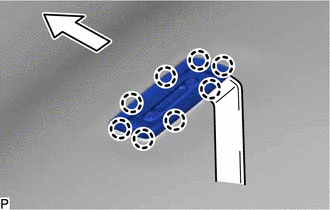

1. REMOVE SPOT LIGHT ASSEMBLY

(a) Using a moulding remover, disengage the 8 claws.

Front

(b) Disconnect the connector to remove the spot light assembly.

    Removal
