Toyota Avalon Service & Repair Manual: Power Outlet Socket(for Console Box Front Side)

Toyota Avalon Service & Repair Manual / Vehicle Interior / Power Outlets (int) / Power Outlet Socket(for Console Box Front Side)

Components

COMPONENTS

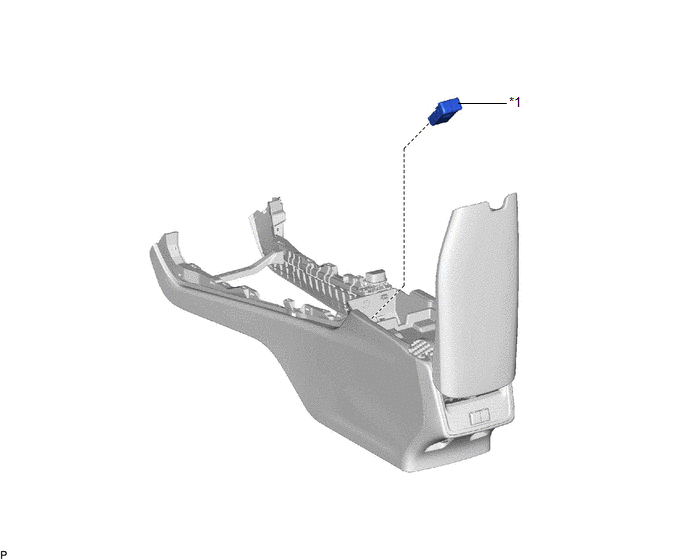

ILLUSTRATION

*1

USB CHARGER SOCKET

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL USB CHARGER SOCKET

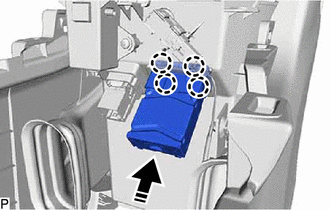

(a) Engage the 4 claws to install the USB charger socket as shown in the illustration.

Install in this Direction

(b) Connect the connector.

2. INSTALL CONSOLE BOX ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE CONSOLE BOX ASSEMBLY

Click here

2. REMOVE USB CHARGER SOCKET

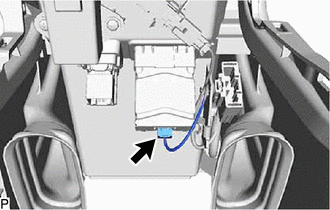

(a) Disconnect the connector.

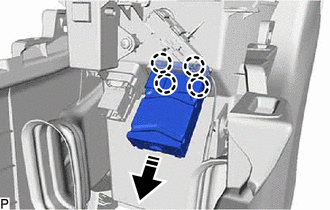

(b) Disengage the 4 claws and remove the USB charger socket as shown in the illustration.

Remove in this Direction

    Power Outlets (int)

    Power Outlet Socket(for Console Box Rear Side)
