Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

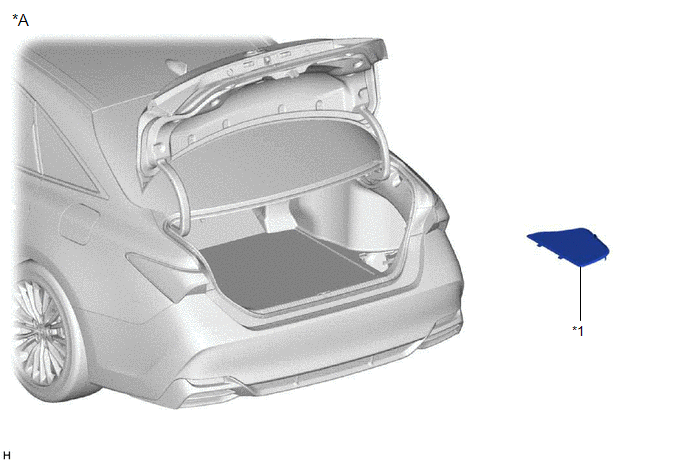

ILLUSTRATION

*A

for HV Model

-

-

*1

LUGGAGE TRIM SERVICE HOLE COVER

-

-

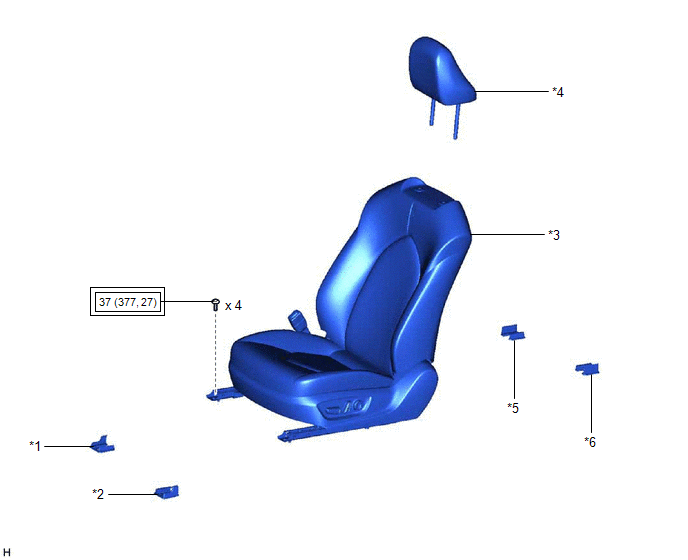

ILLUSTRATION

*1

FRONT INNER SEAT TRACK BRACKET COVER

*2

FRONT OUTER SEAT TRACK BRACKET COVER

*3

FRONT SEAT ASSEMBLY

*4

FRONT SEAT HEADREST ASSEMBLY

*5

REAR INNER SEAT TRACK BRACKET COVER

*6

REAR OUTER SEAT TRACK BRACKET COVER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

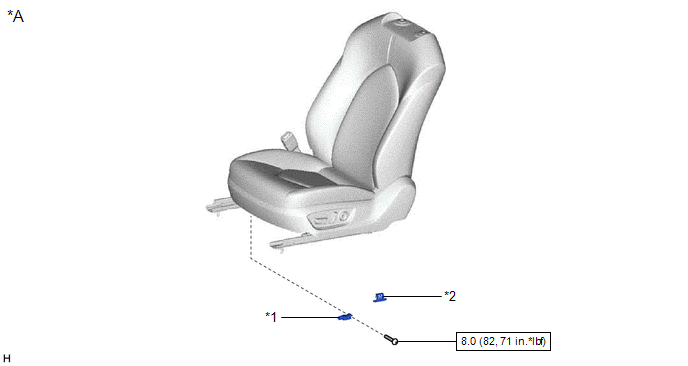

ILLUSTRATION

*A

for Driver Side

-

-

*1

SEAT POSITION AIRBAG SENSOR

*2

SEAT SLIDE POSITION SENSOR PROTECTOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

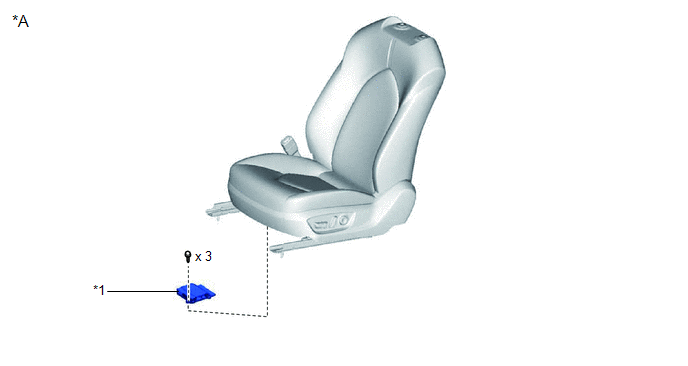

ILLUSTRATION

*A

w/ Seat Position Memory System

-

-

*1

POSITION CONTROL ECU ASSEMBLY LH

-

-

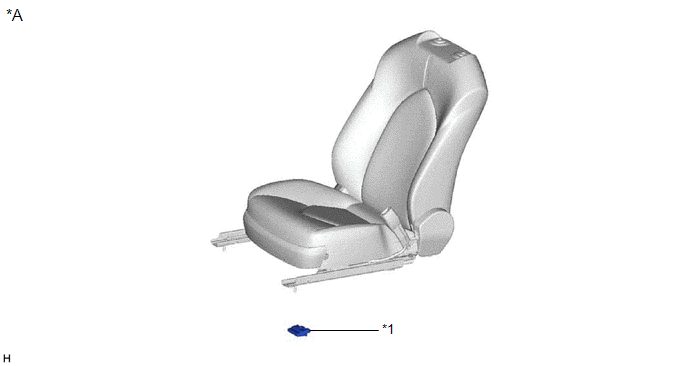

ILLUSTRATION

*A

for Front Passenger Side

-

-

*1

OCCUPANT DETECTION ECU

-

-

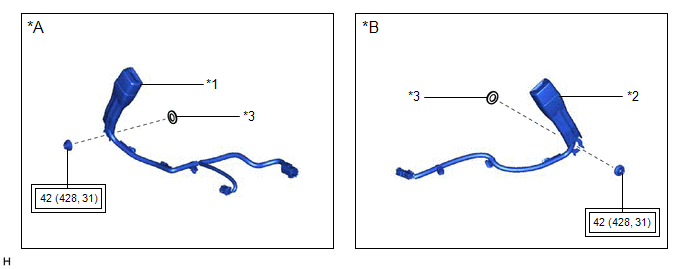

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT SEAT INNER BELT ASSEMBLY LH

*2

FRONT SEAT INNER BELT ASSEMBLY RH

*3

FRONT SEAT BELT ANCHOR PLATE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

ILLUSTRATION

*1

FRONT SEAT CUSHION SHIELD

*2

FRONT SEAT FRONT CUSHION SHIELD

*3

FRONT SEAT INNER CUSHION SHIELD

*4

FRONT SEAT LOWER CUSHION SHIELD

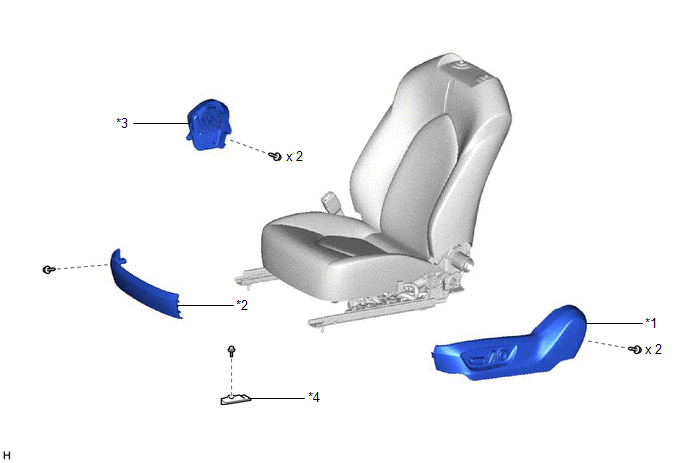

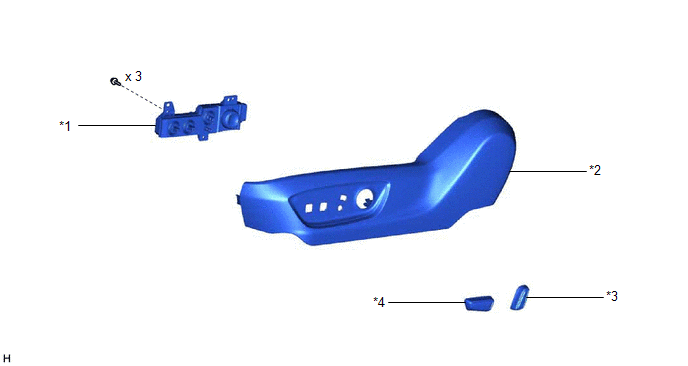

ILLUSTRATION

*1

FRONT POWER SEAT SWITCH

*2

FRONT SEAT CUSHION SHIELD

*3

RECLINING POWER SEAT SWITCH KNOB

*4

SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

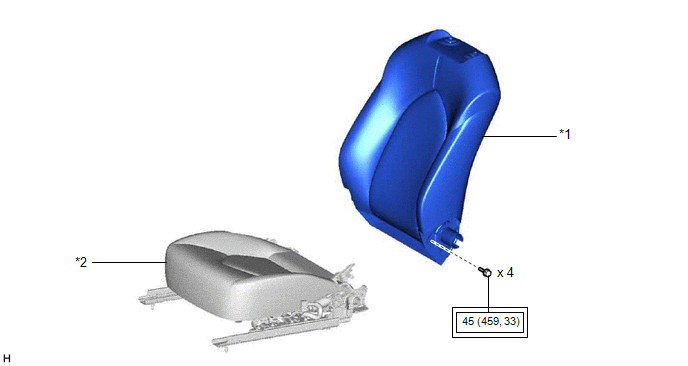

ILLUSTRATION

*1

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*2

SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

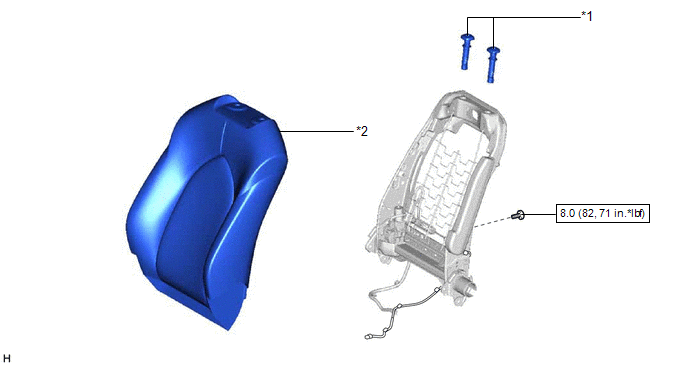

ILLUSTRATION

*1

FRONT SEAT HEADREST SUPPORT

*2

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

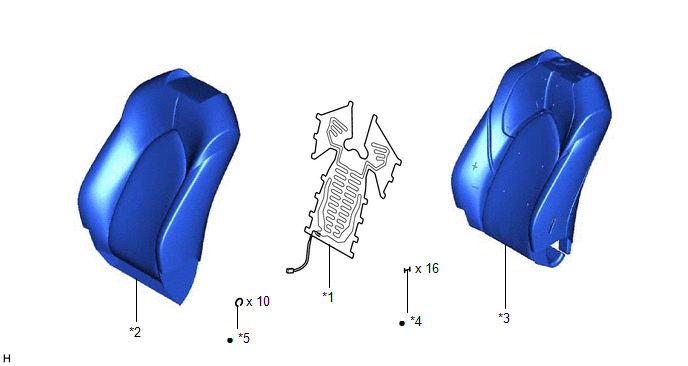

ILLUSTRATION

*1

FRONT SEATBACK HEATER ASSEMBLY

*2

SEPARATE TYPE FRONT SEATBACK COVER

*3

SEPARATE TYPE FRONT SEATBACK PAD

*4

TAG PIN

*5

HOG RING

-

-

Non-reusable part

-

-

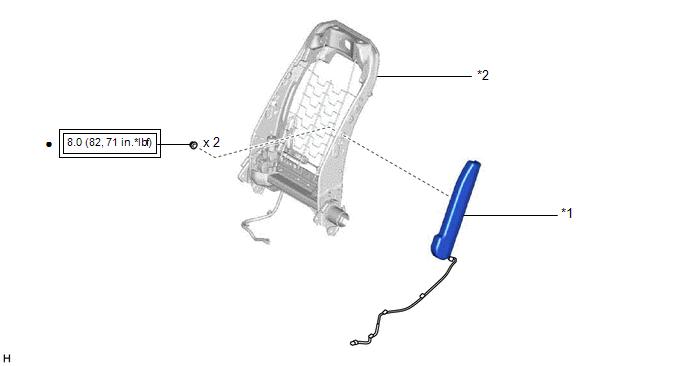

ILLUSTRATION

*1

FRONT SEAT AIRBAG ASSEMBLY

*2

SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

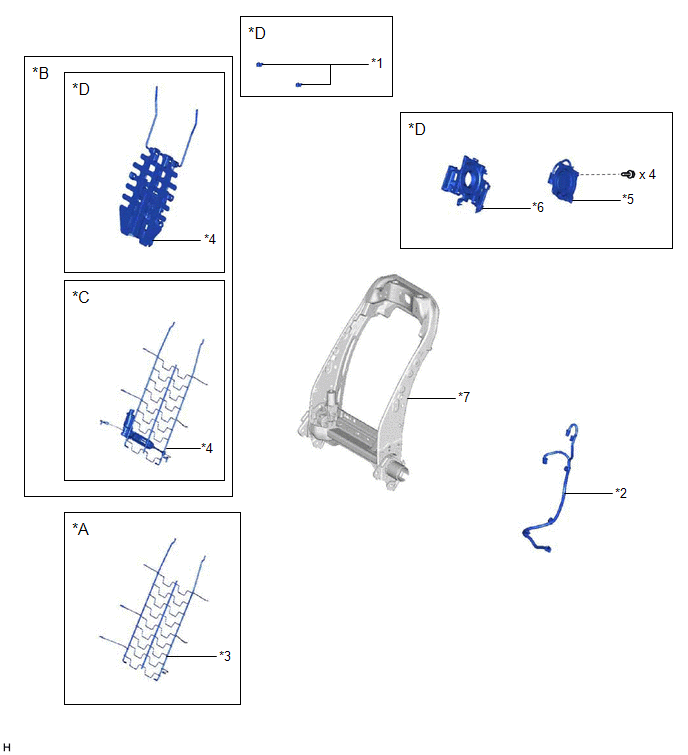

ILLUSTRATION

*A

w/o Lumbar Support

*B

w/ Lumbar Support

*C

w/o Climate Control Seat System

*D

w/ Climate Control Seat System

*1

FRONT NO. 2 SEATBACK HOOK

*2

FRONT SEAT NO. 2 WIRE

*3

FRONT SEATBACK SPRING SUB-ASSEMBLY RH

*4

LUMBAR SUPPORT ADJUSTER ASSEMBLY

*5

SEATBACK CLIMATE CONTROL BLOWER

*6

SEATBACK BLOWER FAN ADAPTER

*7

FRONT SEATBACK FRAME SUB-ASSEMBLY

-

-

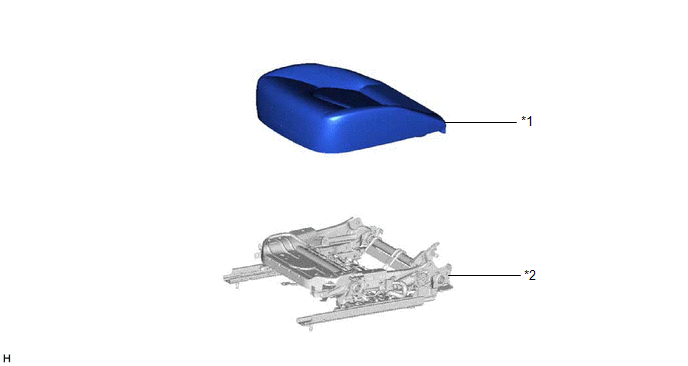

ILLUSTRATION

*1

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

*2

SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

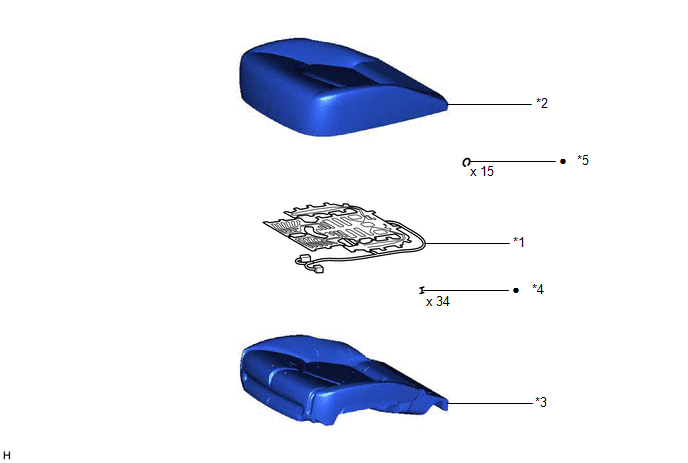

ILLUSTRATION

*1

FRONT SEAT CUSHION HEATER ASSEMBLY

*2

SEPARATE TYPE FRONT SEAT CUSHION COVER

*3

SEPARATE TYPE FRONT SEAT CUSHION PAD

*4

TAG PIN

*5

HOG RING

-

-

Non-reusable part

-

-

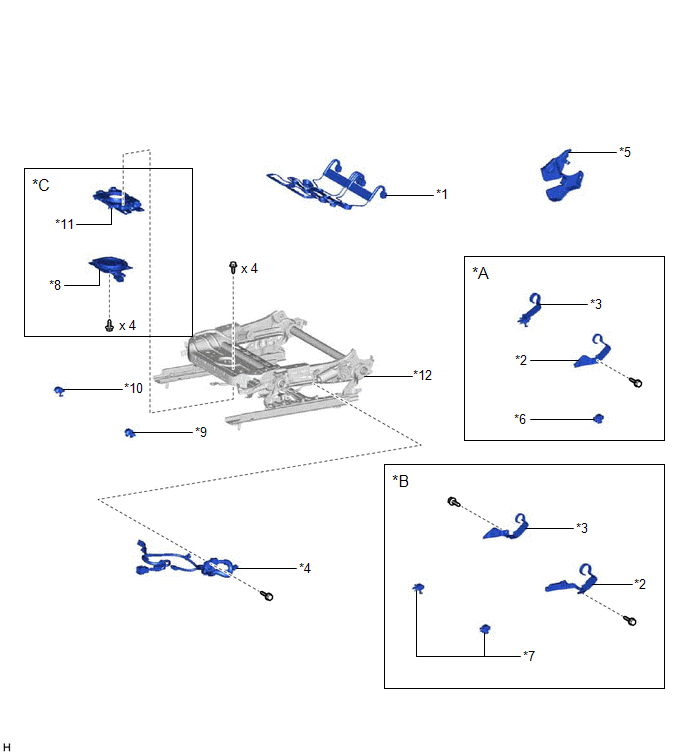

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*C

w/ Climate Control Seat System

-

-

*1

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

*2

FRONT SEAT LOWER CUSHION SHIELD LH

*3

FRONT SEAT LOWER CUSHION SHIELD RH

*4

FRONT SEAT WIRE

*5

LH SEAT RECLINING ADJUSTER INSIDE COVER

*6

LH SEAT SEAT TRACK UPPER RAIL COVER

*7

RH SEAT SEAT TRACK UPPER RAIL COVER

*8

SEAT CUSHION CLIMATE CONTROL BLOWER

*9

SEAT TRACK UPPER RAIL COVER LH

*10

SEAT TRACK UPPER RAIL COVER RH

*11

SEAT CUSHION BLOWER FAN ADAPTER

*12

FRONT SEAT ADJUSTER ASSEMBLY

    Front Seat Assembly

    Disassembly
