Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TELEPHONE AND GPS ANTENNA BRACKET

2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY

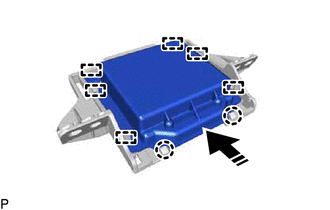

(a) Engage the 6 guides and 2 claws to install the telephone and GPS antenna assembly as shown in the illustration.

Install in this Direction

3. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET

(a) Install the telephone and GPS antenna assembly with bracket with the 2 screws.

(b) Engage the 2 claws.

(c) Connect the connector.

4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
