Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL NAVIGATION ANTENNA BRACKET

2. INSTALL NAVIGATION ANTENNA ASSEMBLY

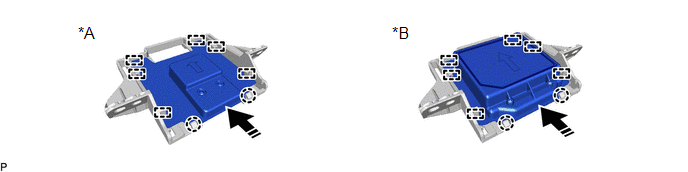

(a) Engage the 6 guides and 2 claws to install the navigation antenna assembly as shown in the illustration.

*A

w/o Manual (SOS) Switch

*B

w/ Manual (SOS) Switch

Install in this Direction

-

-

3. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

(a) Install the navigation antenna assembly with bracket with the 2 screws.

(b) Engage the 2 claws.

(c) Connect the connector.

4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here

    Inspection

    Removal
