Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: System Diagram

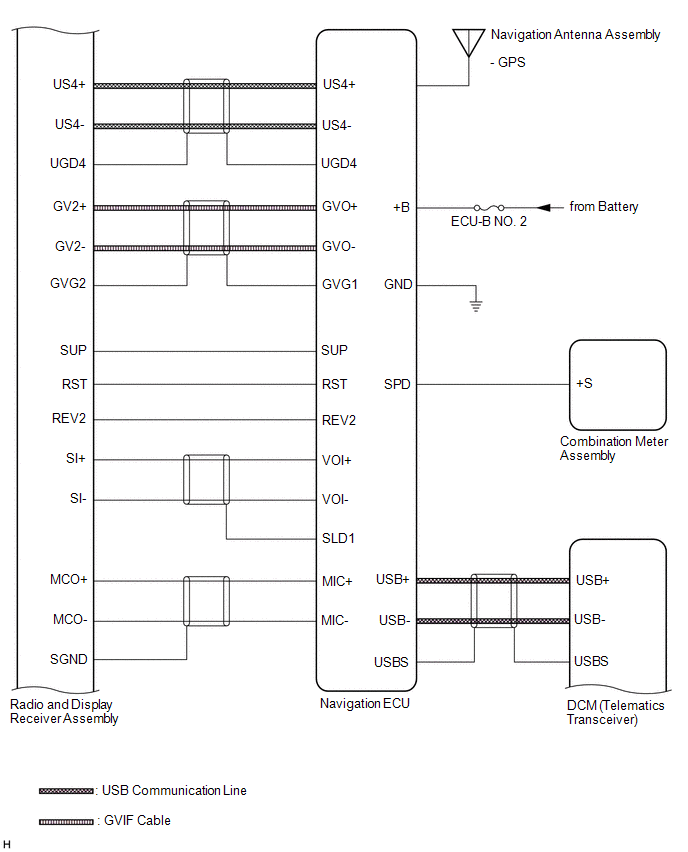

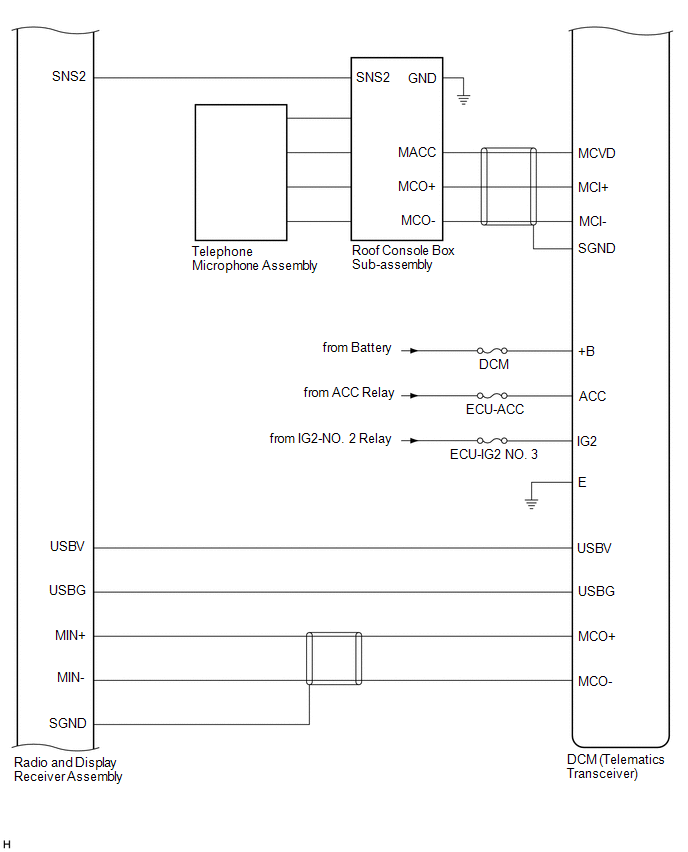

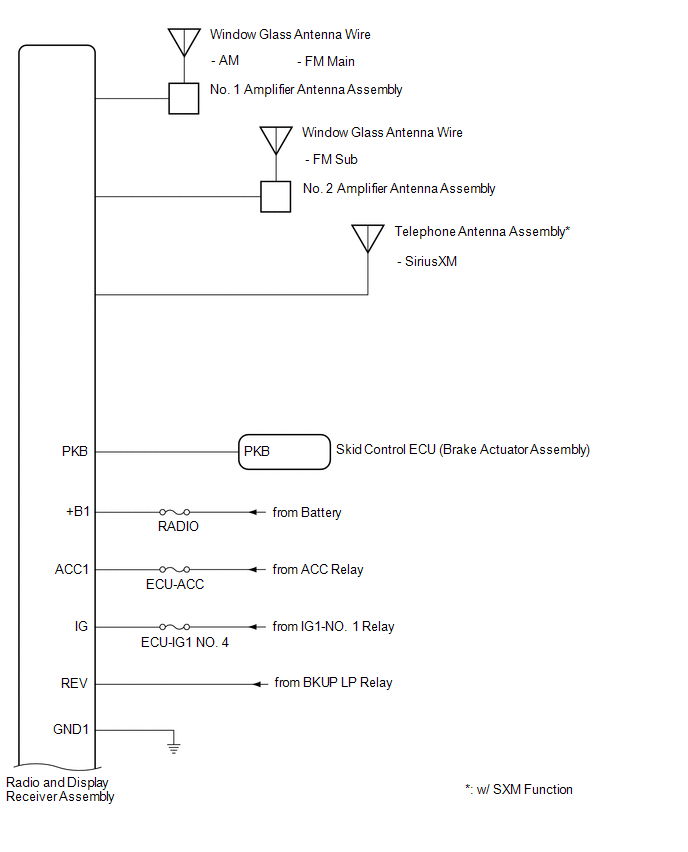

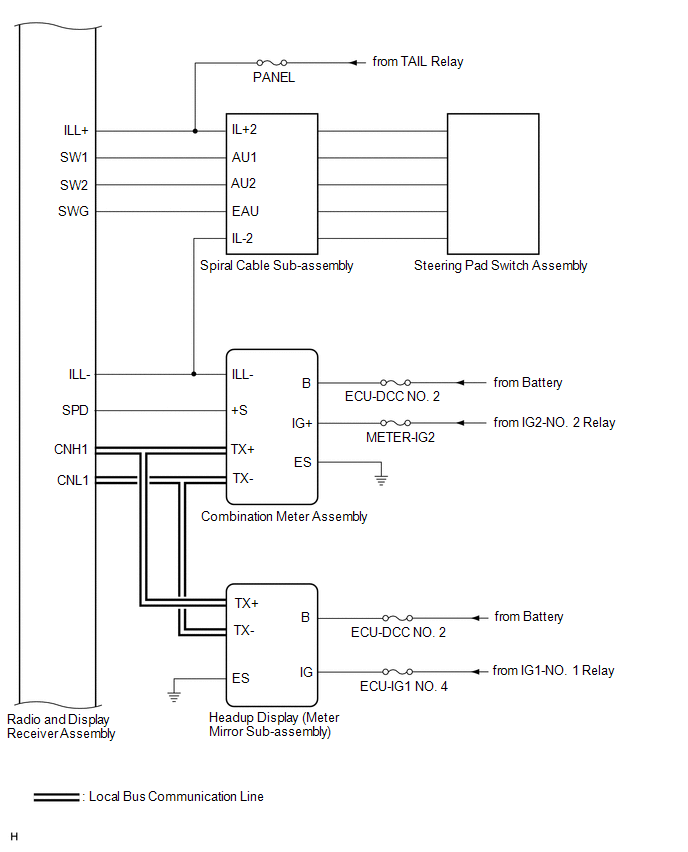

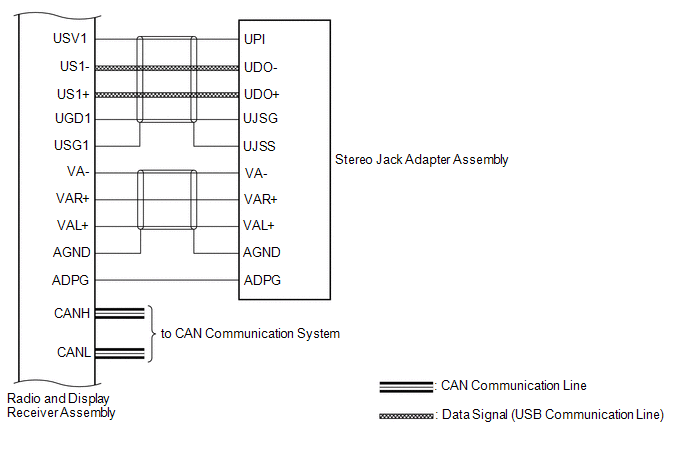

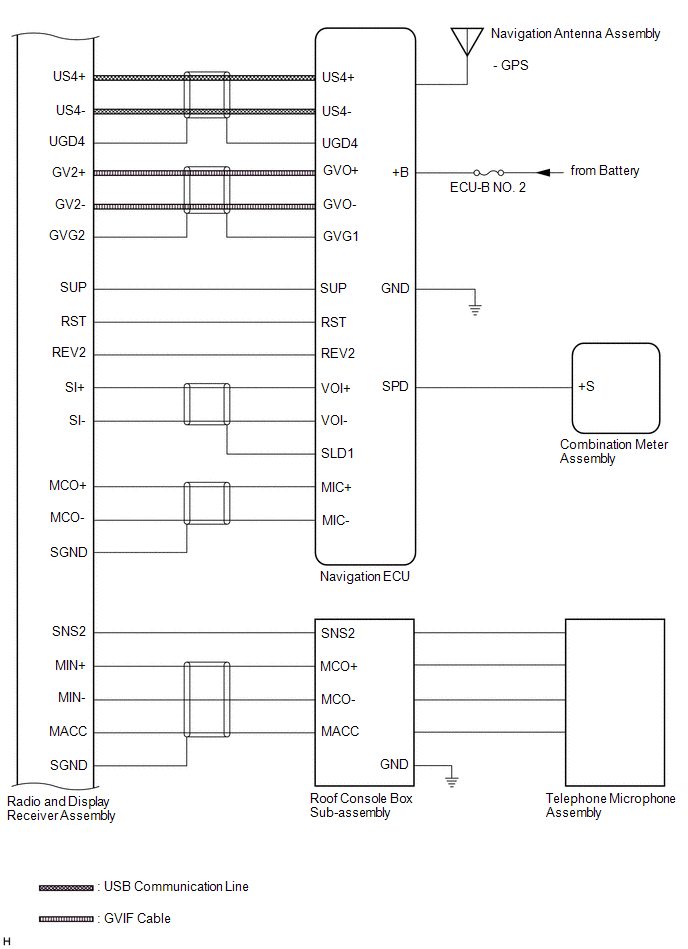

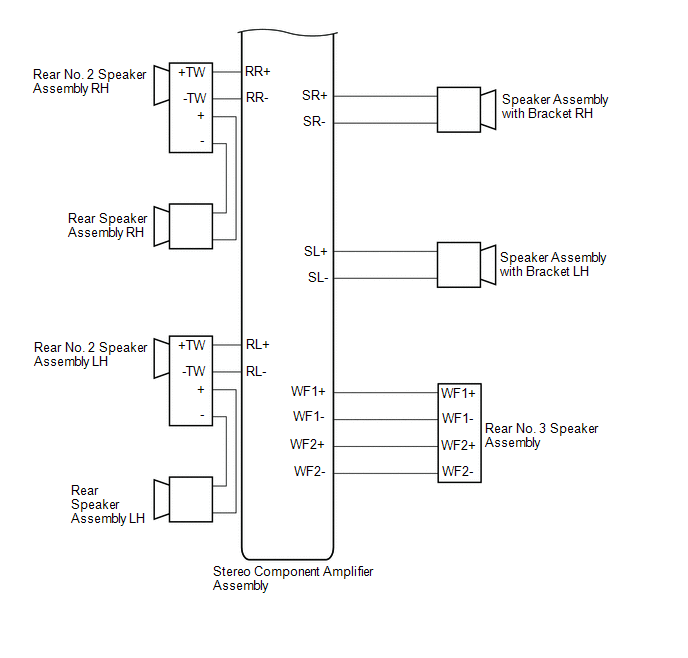

SYSTEM DIAGRAM

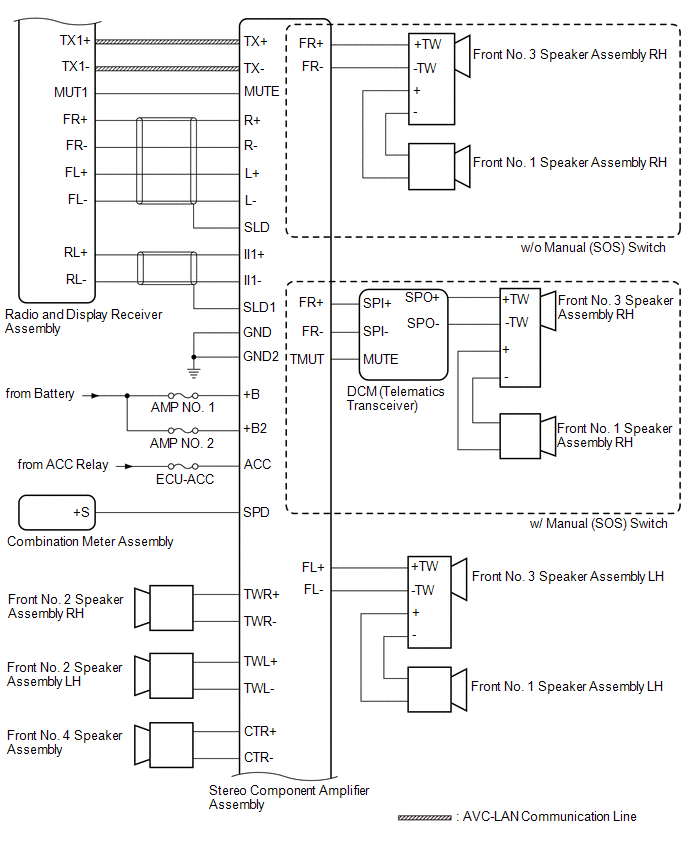

w/ Manual (SOS) Switch w/o Manual (SOS) Switch
    System Description

    Terminals Of Ecu
