TERMINALS OF ECU

BLIND SPOT MONITOR SENSOR RH (MASTER)

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
P5-4 (OMIR) - P5-10 (BRGD)	R - W-B	Outer rear view mirror indicator RH power source	Outer rear view mirror indicator RH illuminated	3.5 to 9.5 V
			Outer rear view mirror indicator RH blinking	Alternating between 0 to 9.5 V
			Outer rear view mirror indicator RH not illuminated	Below 1 V
P5-5 (BRB) - P5-10 (BRGD)	B - W-B	IG power source	Engine switch off	Below 1 V
P5-5 (BRB) - P5-10 (BRGD)	B - W-B	IG power source	Engine switch on (IG)	11 to 14 V
P5-10 (BRGD) - Body Ground	W-B - Body ground	Ground	Always	Below 1 V

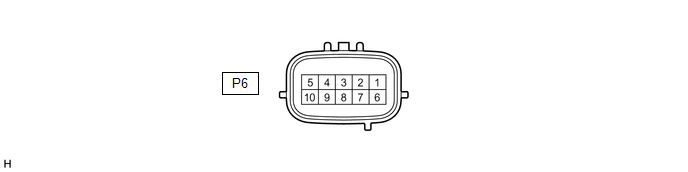

BLIND SPOT MONITOR SENSOR LH (SLAVE)

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
P6-3 (BUZ) - P6-10 (BLGD)	W - W-B	RCTA buzzer (blind spot monitor buzzer) operation signal	RCTA buzzer (blind spot monitor buzzer) not sounding	11 to 14 V
P6-3 (BUZ) - P6-10 (BLGD)	W - W-B	RCTA buzzer (blind spot monitor buzzer) operation signal	RCTA buzzer (blind spot monitor buzzer) sounding	Alternating between 0 to 14 V
P6-4 (OMIL) - P6-10 (BLGD)	R - W-B	Outer rear view mirror indicator LH power source	Outer rear view mirror indicator LH illuminated	3.5 to 9.5 V
			Outer rear view mirror indicator LH blinking	Alternating between 0 to 9.5 V
			Outer rear view mirror indicator LH not illuminated	Below 1 V
P6-5 (BLB) - P6-10 (BLGD)	B - W-B	IG power source	Engine switch off	Below 1 V
P6-5 (BLB) - P6-10 (BLGD)	B - W-B	IG power source	Engine switch on (IG)	11 to 14 V
P6-10 (BLGD) - Body Ground	W-B - Body ground	Ground	Always	Below 1 V

System Diagram

Lost Communication with ECM / PCM "A" (U0100,U0125,U0126,U0129,U0142)
