Toyota Avalon Service & Repair Manual: Components

Toyota Avalon Service & Repair Manual / Audio, Visual, Telematics / Park Assist / Monitoring / Clearance Warning Ecu / Components

COMPONENTS

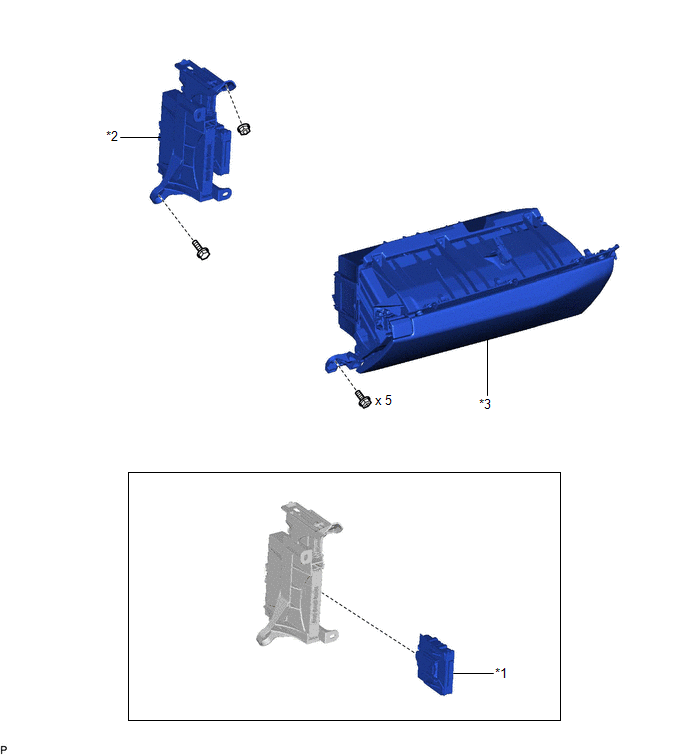

ILLUSTRATION

*1	CLEARANCE WARNING ECU ASSEMBLY	*2	ECU INTEGRATION BOX RH
*3	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	-	-
