Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL CLEARANCE WARNING ECU ASSEMBLY

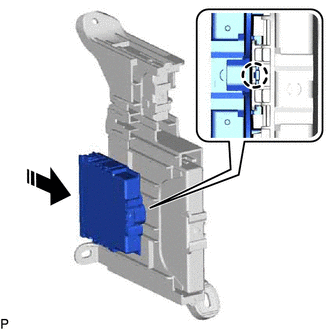

(a) Engage the claw to install the clearance warning ECU assembly as shown in the illustration.

Install in this Direction

2. INSTALL ECU INTEGRATION BOX RH

Click here

3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

4. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here

5. PERFORM CALIBRATION

for Gasoline Model: Click here

for HV Model: Click here

SST: 09989-00020
