Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

PARTS LOCATION

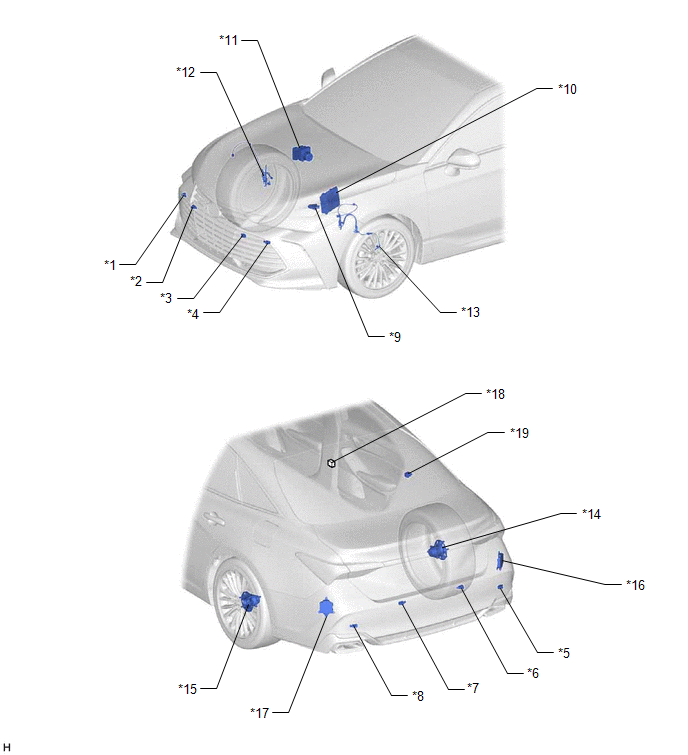

ILLUSTRATION

*1

FRONT CORNER ULTRASONIC SENSOR RH

*2

FRONT CENTER ULTRASONIC SENSOR RH

*3

FRONT CENTER ULTRASONIC SENSOR LH

*4

FRONT CORNER ULTRASONIC SENSOR LH

*5

REAR CORNER ULTRASONIC SENSOR RH

*6

REAR CENTER ULTRASONIC SENSOR RH

*7

REAR CENTER ULTRASONIC SENSOR LH

*8

REAR CORNER ULTRASONIC SENSOR LH

*9

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*10

ECM

*11

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*12

FRONT SPEED SENSOR RH

*13

FRONT SPEED SENSOR LH

*14

REAR AXLE HUB AND BEARING ASSEMBLY RH

- REAR SPEED SENSOR RH

*15

REAR AXLE HUB AND BEARING ASSEMBLY LH

- REAR SPEED SENSOR LH

*16

BLIND SPOT MONITOR SENSOR RH

*17

BLIND SPOT MONITOR SENSOR LH

*18

NO. 26 JUNCTION CONNECTOR (w/ Blind Spot Monitor System)

*19

NO. 2 CLEARANCE WARNING BUZZER

-

-

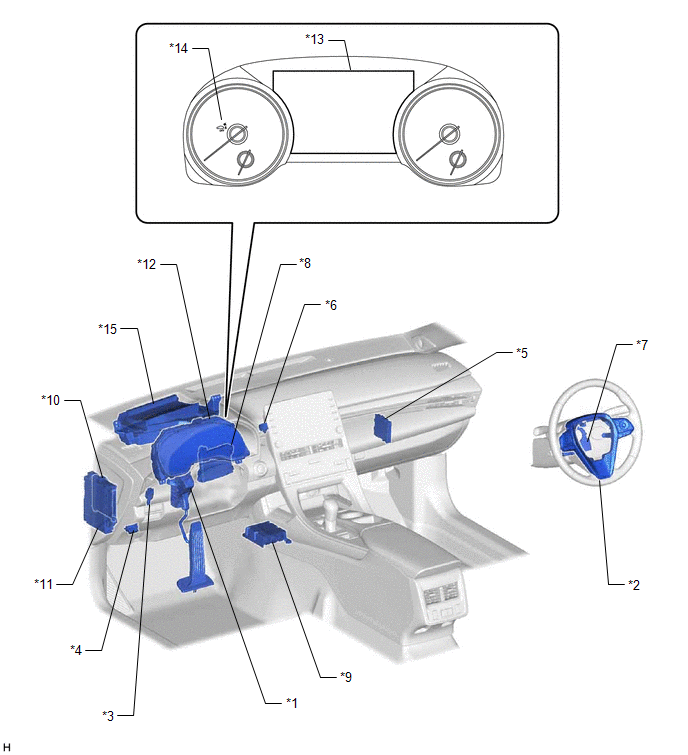

ILLUSTRATION

*1

ACCELERATOR PEDAL SENSOR

*2

STEERING PAD SWITCH ASSEMBLY

*3

STOP LIGHT SWITCH ASSEMBLY

*4

DLC3

*5

CLEARANCE WARNING ECU ASSEMBLY

*6

NO. 1 CLEARANCE WARNING BUZZER

*7

STEERING SENSOR

*8

AIR CONDITIONING AMPLIFIER ASSEMBLY

*9

AIRBAG ECU ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*10

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*11

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-DCC NO. 1 FUSE

- ECU-IG1 NO.4 FUSE

- ECU-IG1 NO. 2 FUSE

*12

COMBINATION METER ASSEMBLY

*13

MULTI-INFORMATION DISPLAY

*14

ICS OFF INDICATOR

*15

HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System)

-

-

    Operation Check

    Precaution
