Toyota Avalon Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during parking assist ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Replacement of parking assist ECU

  • Parking assist ECU initialization
  • Adjust steering angle

Panoramic View Monitor System

Front passenger seat

Zero point calibration (Occupant classification system)

  • Occupant classification system
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for HV Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Replacement of parking assist ECU

  • Parking assist ECU initialization
  • Adjust steering angle

Panoramic View Monitor System

Front passenger seat

Zero point calibration (Occupant classification system)

  • Occupant classification system
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

Click here

2. REMOVE PARKING ASSIST ECU COVER

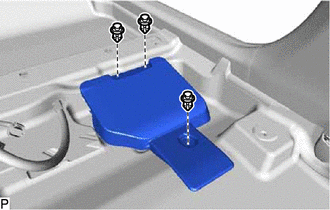

(a) Remove the 3 clips and parking assist ECU cover.

3. REMOVE PARKING ASSIST ECU

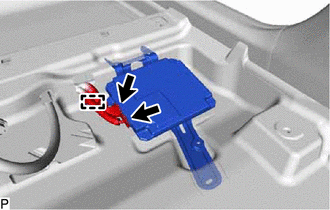

(a) Disconnect each connector.

(b) Disengage the clamp.

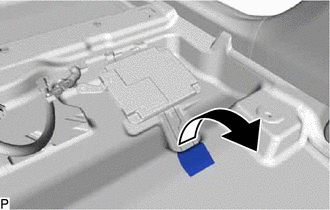

(c) Turn back the front floor carpet assembly and front floor mat as shown in the illustration.

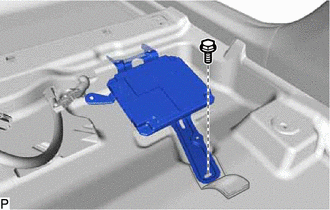

(d) Remove the bolt.

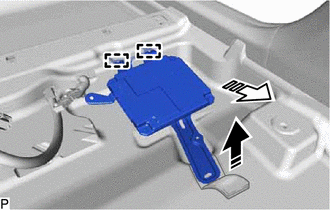

(e) Disengage the 2 guides and remove the parking assist ECU as shown in the illustration.

Remove in this Direction (1)

Remove in this Direction (2)

    Installation

    Parking Assist Monitor System(for Gasoline Model)
