Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL TELEVISION CAMERA ASSEMBLY

(a) When reusing the television camera assembly:

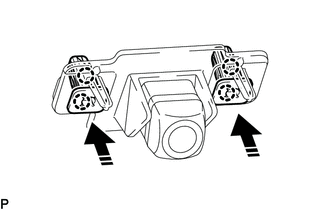

(1) Engage the 4 claws to install 2 new grommets as shown in the illustration.

Install in this Direction

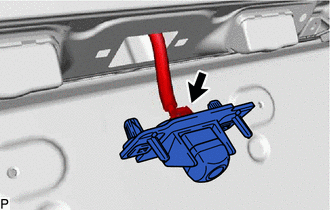

(b) Connect the connector.

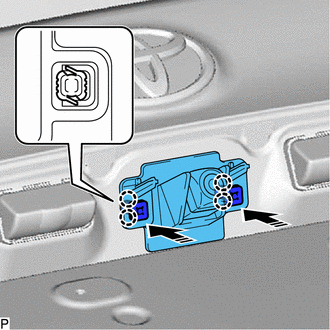

(c) Engage the 4 claws to install the television camera assembly as shown in the illustration.

Install in this Direction

2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

3. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

for Gasoline Model: Click here

for HV Model: Click here

4. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

for Gasoline Model: Click here

for HV Model: Click here
