REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during television camera assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Television camera assembly (w/ Parking Assist Monitor System)	Parking assist monitor system initialization Television camera assembly optical axis adjustment (Back camera position setting)	Parking Assist Monitor System
Television camera assembly (w/ Panoramic View Monitor System)	Rear television camera view adjustment Television camera assembly optical axis adjustment (Back camera position setting)	Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Television camera assembly (w/ Parking Assist Monitor System)	Parking assist monitor system initialization Television camera assembly optical axis adjustment (Back camera position setting)	Parking Assist Monitor System
Television camera assembly (w/ Panoramic View Monitor System)	Rear television camera view adjustment Television camera assembly optical axis adjustment (Back camera position setting)	Panoramic View Monitor System

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

2. REMOVE TELEVISION CAMERA ASSEMBLY

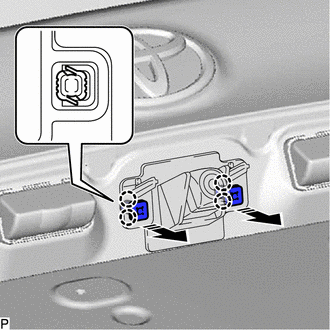

(a) Disengage the 4 claws to remove the 2 grommets as shown in the illustration.

Remove in this Direction

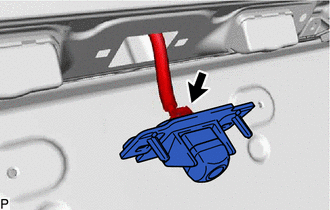

(b) Disconnect the connector to remove the television camera assembly.
