COMPONENTS

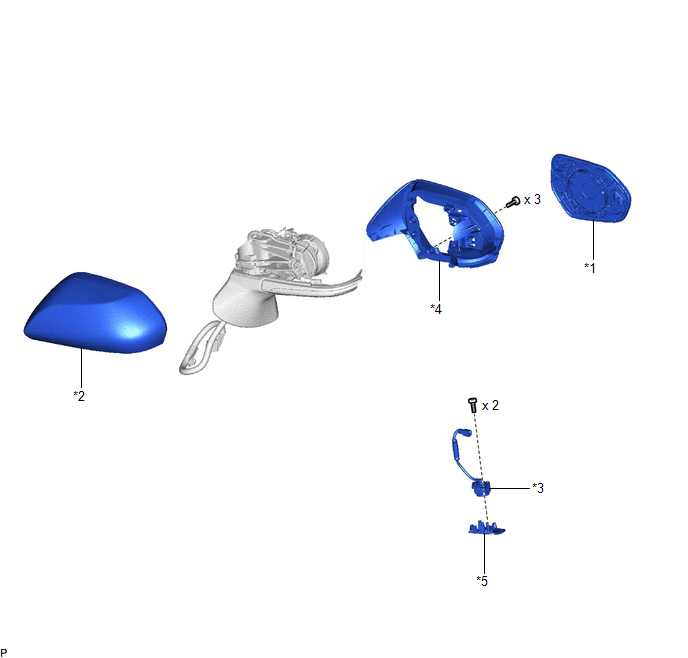

ILLUSTRATION

*1

OUTER MIRROR

*2

OUTER MIRROR COVER

*3

SIDE TELEVISION CAMERA ASSEMBLY

*4

VISOR HOUSING

*5

CAMERA COVER

-

-
    Television Camera(for Side)
