COMPONENTS

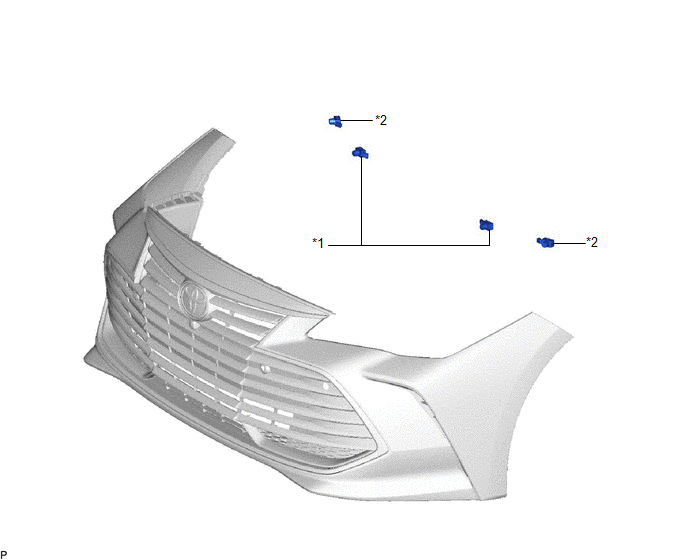

ILLUSTRATION

*1

FRONT CENTER ULTRASONIC SENSOR

*2

FRONT CORNER ULTRASONIC SENSOR

    Ultrasonic Sensor(for Front)

    Inspection
